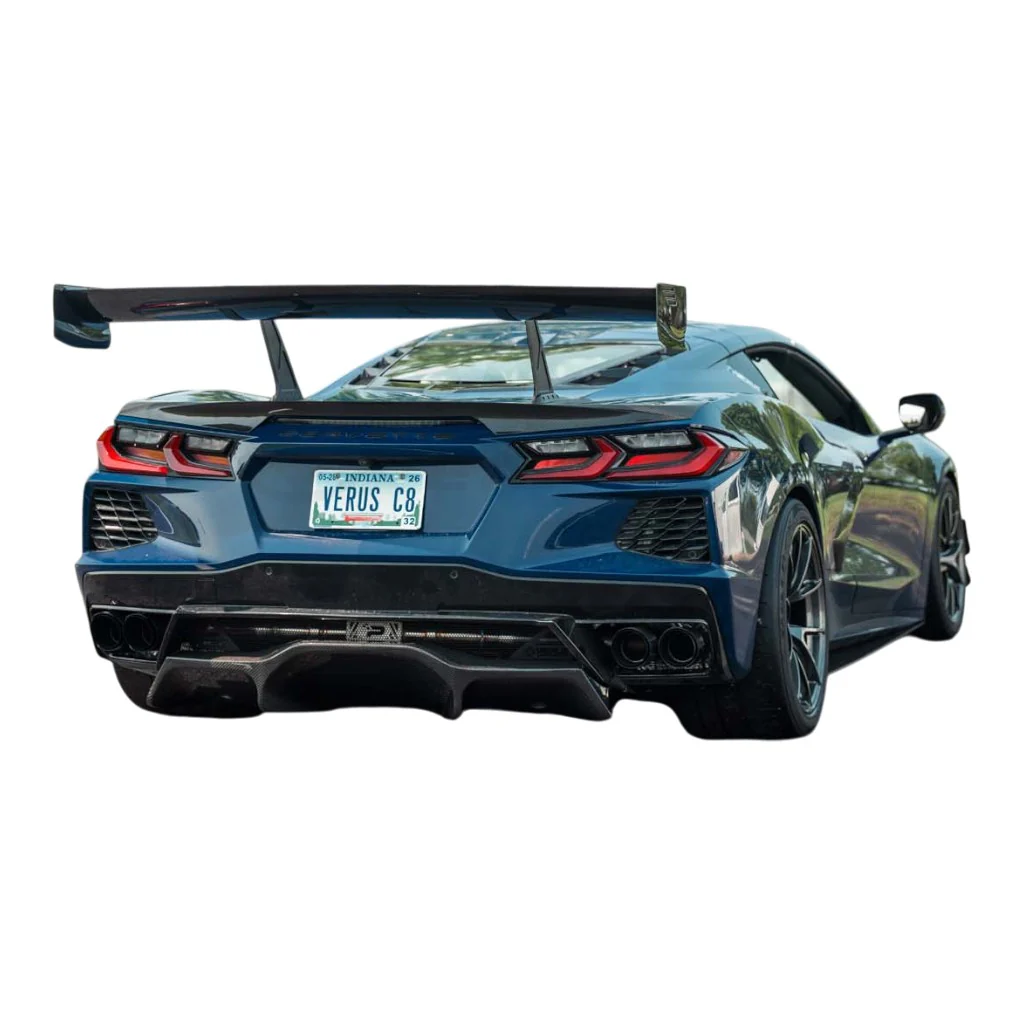

VERUS ENGINEERING A0666A Swan Neck Rear Wing Kit UCW for CHEVROLET Corvette (C8)

Description VERUS ENGINEERING A0666A Swan Neck Rear Wing Kit UCW for CHEVROLET Corvette (C8)

The VERUS ENGINEERING A0666A UCW Swan Neck Rear Wing Kit is developed to significantly increase rear downforce on the Chevrolet Corvette Stingray (C8), improving stability, driver confidence, and lap time consistency during track use. While the C8 Corvette delivers strong factory performance, this rear wing addresses aerodynamic limitations by providing a substantial increase in rear grip to better balance aggressive driving conditions.

Unlike traditional bottom-mount designs, the UCW swan neck configuration utilizes top-mounted uprights to fully exploit the low-pressure zone beneath the wing element. This design increases aerodynamic efficiency by allowing more effective use of the wing’s lower surface, generating higher downforce with a reduced drag penalty. The airfoil profile is derived from the V1X and refined using CFD analysis, ANSYS adjoint optimization, and wind tunnel testing to ensure consistent performance when installed on the vehicle.

In-house 3D scan data was used throughout development to achieve near-OEM fit and finish. The uprights are positioned in airflow-disturbed regions to minimize drag, while the mounting system sandwiches the engine cover for strength and stability. The wing is designed to integrate seamlessly with the vehicle’s profile and effectively balance large front aerodynamic systems, such as the VERUS ENGINEERING Front Splitter Kit.

• Swan neck mounting improves aerodynamic efficiency compared to bottom-mount designs
• Significantly increases rear downforce with minimal drag increase
• Optimized airfoil using CFD, ANSYS adjoint solver, and wind tunnel validation
• Designed to balance aggressive front aerodynamic packages
• Near-OEM fit and finish using in-house vehicle scan data

Specifications:

• Rear Wing Material: 2x2 Twill Pre-Preg Carbon Fiber, autoclave cured
• Finish: Automotive high-gloss clear coat
• Uprights and Mounts: CNC-machined 6061-T6 aluminum
• Adjustment Range: 15 degrees of angle adjustment
• Downforce Capacity: Capable of generating and withstanding 500+ lbs
• Hardware: Stainless steel throughout

Kit Contents:

• Carbon Fiber Rear Wing Assembly × 1
• Machined Aluminum Swan Neck Rear Wing Uprights × 2
• Machined Aluminum Rear Wing Engine Cover Mounts × 2
• Machined Aluminum Rear Engine Cover Bottom Supports × 2
• Vented Carbon Fiber Rear Wing Endplates × 2
• Complete Hardware Kit with Installation Templates × 1
