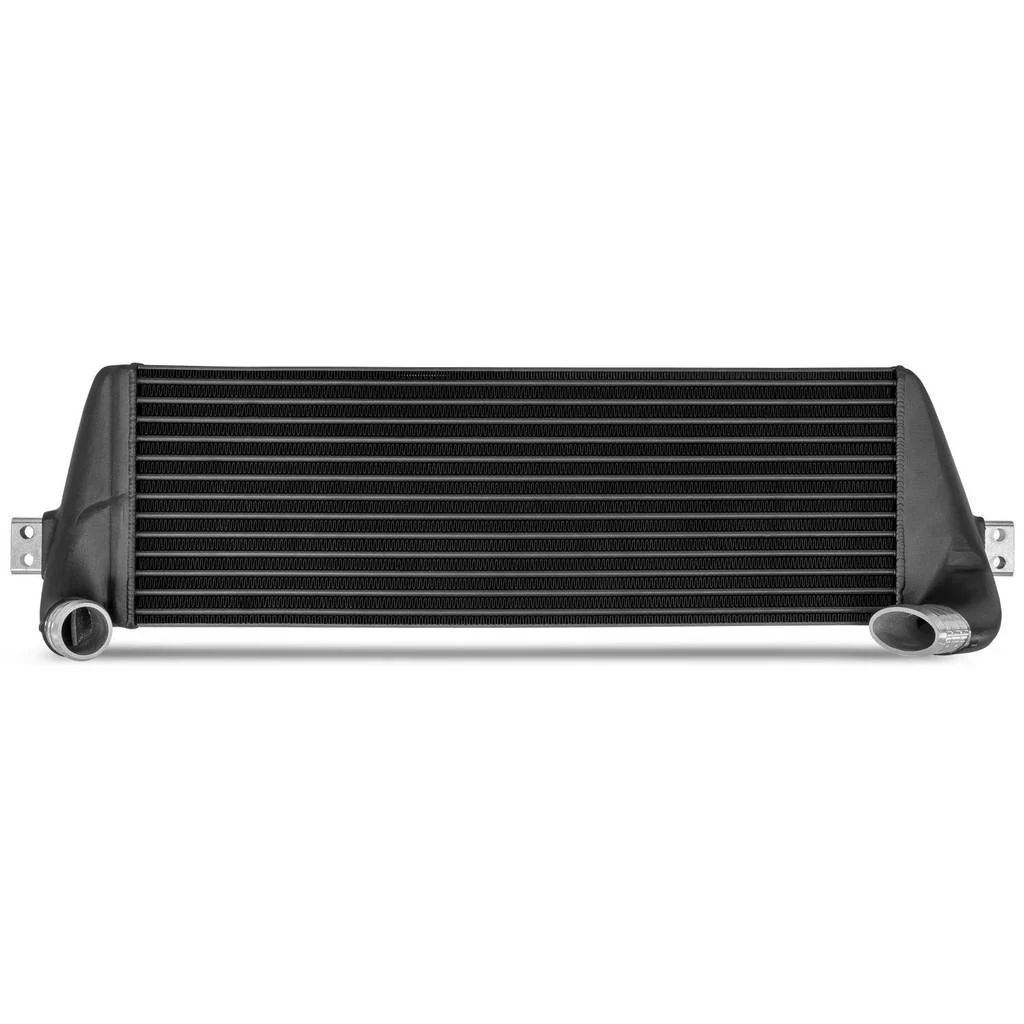

WAGNER TUNING 200001109 Competition Intercooler Kit FIAT 500 Abarth FIAT 500 Abarth

Description WAGNER TUNING 200001109 Competition Intercooler Kit FIAT 500 Abarth FIAT 500 Abarth

The Wagner Tuning Competition Intercooler is designed for the Fiat 500 Abarth 1.4 Turbo, offering a significant upgrade in cooling performance and airflow. This intercooler replaces the two original side coolers, providing a larger flow area and increased charge air volume for improved engine performance.

The Competition mesh (Tube Fin) and cast aluminum end boxes are optimized for ideal airflow and minimal back pressure. The elliptical hose connection reduces charge air distance, enhancing throttle response. Installation is straightforward with the supplied cross member and instructions, requiring no complex modifications.

Note: Not plug-and-play compatible with US models.

• 131% more charge air volume compared to OEM
• 85% larger flow area than the original intercoolers
• Optimized airflow and minimal back pressure
• Plug-and-play installation with included hardware

Specifications:

• Dimensions: 600 mm x 204.6 mm x 80 mm
• Cooling surface: 1227 cm² (+85% vs. OEM 665 cm²)
• Intercooler volume: 9.8 liters (+131% vs. OEM 4.3 liters)
• Weight: 6 kg
• Installation: Plug-and-play (replaces the two side coolers)
• Part number: 200001109

Kit comes with::

• 1x Wagner Tuning intercooler (black coated)
• 1x cross member (black coated)
• 2x silicone hoses (black)
• 1x mounting material
• 1x installation instructions

Vehicle Compatibility:

• 2008-2016 Fiat 500 Abarth 1.4 Turbo (99 kW/135 hp)
