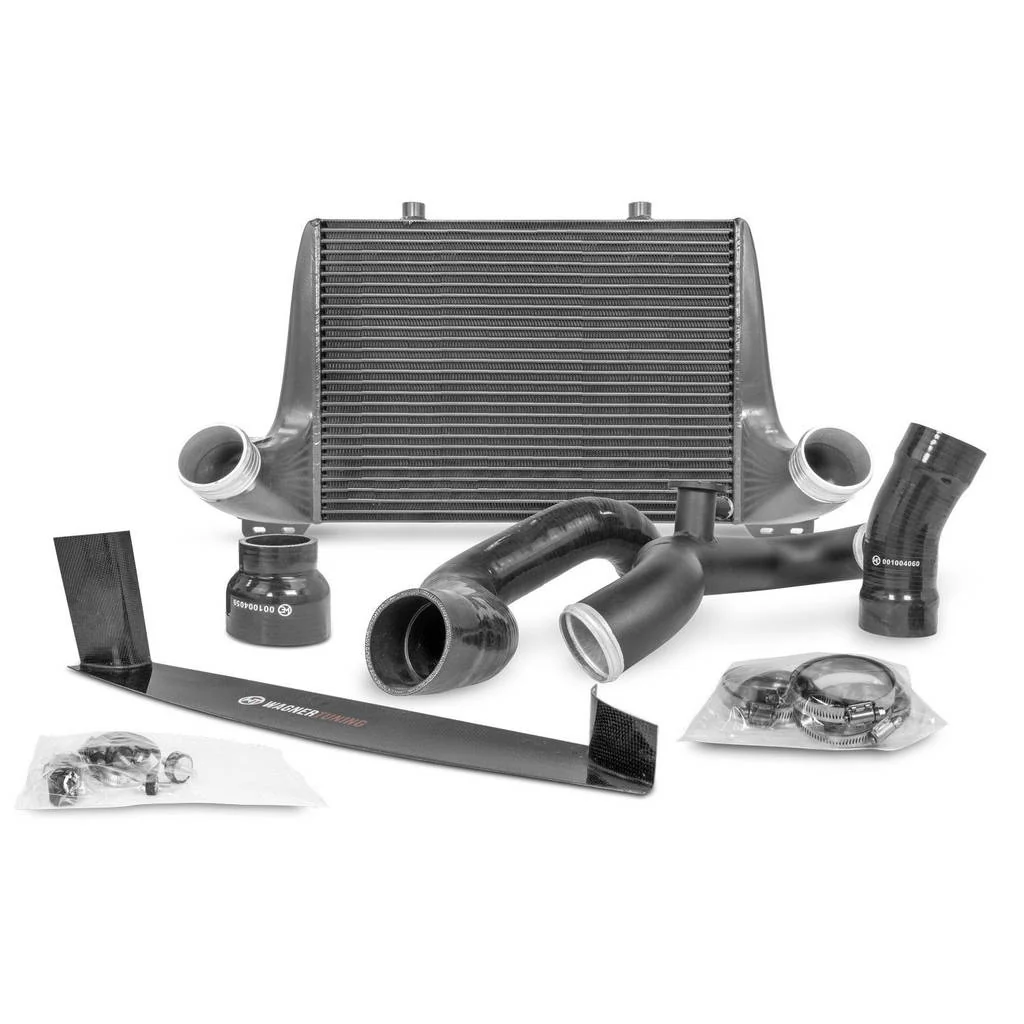

WAGNER TUNING 200001074 Competition Intercooler Kit EVO2 FORD Mustang 2.3 Ecoboost
Description WAGNER TUNING 200001074 Competition Intercooler Kit EVO2 FORD Mustang 2.3 Ecoboost
The Wagner Tuning EVO 2 High-Performance Intercooler Kit is designed for the Ford Mustang 2.3 EcoBoost (2015 and newer, including facelift models). This kit provides a significant increase in cooling performance and efficiency, supporting higher and more stable power output even under extreme conditions.
The EVO 2 intercooler features a substantial increase in volume and flow area compared to the original intercooler. With net dimensions of 535 mm x 392 mm x 95 mm, it offers a 175% larger flow area and 226% more charge air volume. The advanced design includes cast aluminum end boxes optimized for internal airflow, and a carbon air duct for targeted airflow to the intercooler.
This intercooler is tested for pressure resistance up to 6 bar and is coated with a high-quality anti-corrosion finish. The kit is ready for plug & play installation and includes all necessary mounting materials and instructions.
- 226% more charge air volume compared to OEM
- 175% larger flow area than the original intercooler
- Optimized airflow with CAD-designed end boxes and integrated carbon air duct
- Pressure tested up to 6 bar for racing suitability
Specifications:
- Net dimensions: 535 mm x 392 mm x 95 mm
- Volume: 19.9 liters
- Flow area: approx. 2095 cm²
- Inlet and outlet diameter: Ø 70 mm
- Pressure resistance: Up to 6 bar (tested)
- Weight: 15 kg
- Coating: Anti-corrosion (black)
- Special features: Integrated air duct in end box, includes matching carbon air duct
- Fit: Plug & play replacement
- Original intercooler dimensions: 525 mm x 145 mm x 80 mm
- Original intercooler volume: 6.1 liters
- Original flow area: 761 cm²
- Part number: 200001074
Kit comes with::
- 1x Wagner Tuning EVO 2 high-performance intercooler (black)
- 1x carbon air duct
- 1x mounting material
- 1x installation instructions
Vehicle Compatibility:
- Ford Mustang 2.3l EcoBoost (2015+, including facelift)
Original: $779.30
-65%$779.30
$272.75Product Information
