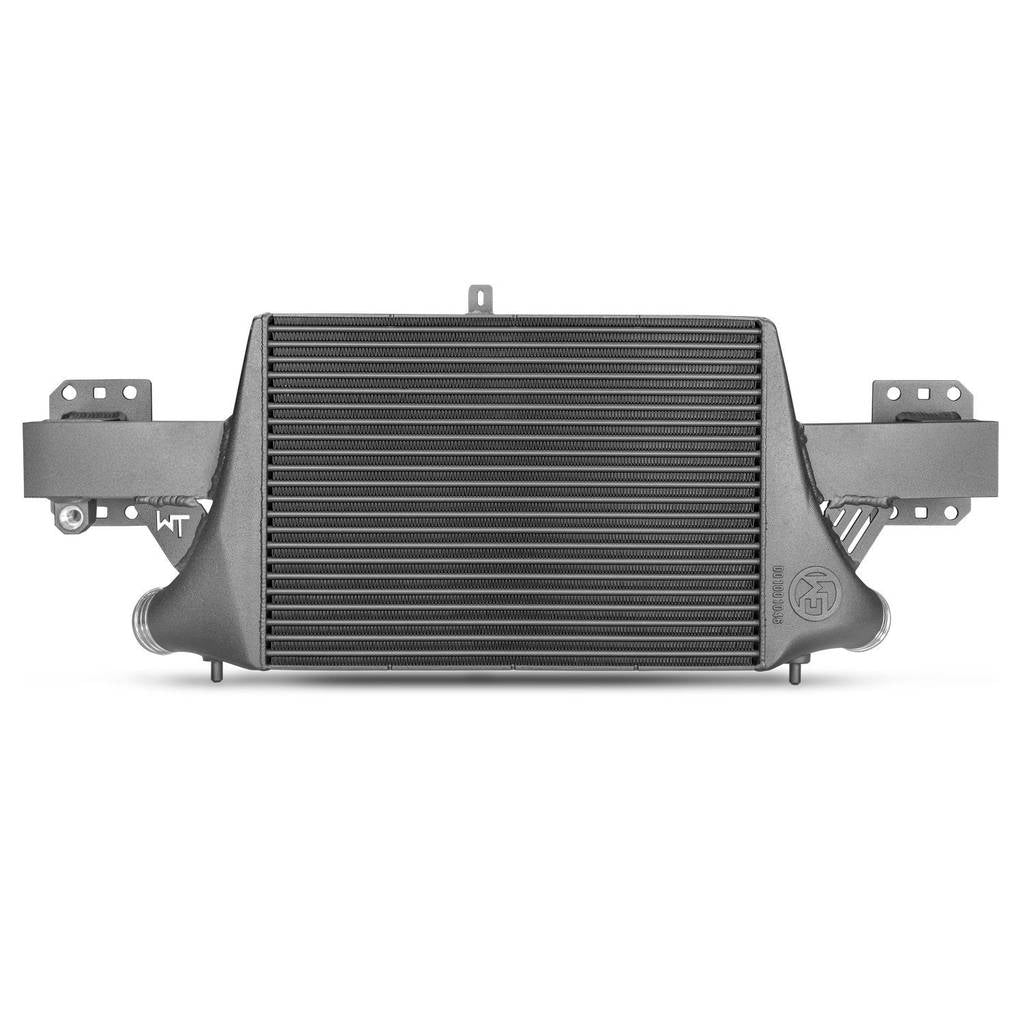

WAGNER TUNING 200001056 Competition Intercooler Kit AUDI 2.5 TFSI

Description WAGNER TUNING 200001056 Competition Intercooler Kit AUDI 2.5 TFSI

The Wagner Tuning Competition Intercooler Kit EVO 3 is designed for the Audi TTRS 8J, offering a 142% increase in charge air volume compared to the OEM intercooler. This kit is supplied with a parts certificate for easy registration and legal compliance.

The EVO 3 features a 120% larger flow area and is available in two mesh variants: a standard version for power classes up to 600 hp, and an X version for power classes above 600 hp. The cast aluminum end boxes are optimized for airflow, and integrated air deflectors ensure even filling of the radiator. Installation is straightforward with a plug-and-play design that mounts to the factory points.

With a weight of only 18 kg and continuous quality control, the kit delivers high standards of performance and safety. The included parts certificate simplifies the registration process for the Audi TTRS 8J.

• 142% more charge air volume compared to OEM intercooler
• 120% larger flow area for improved cooling performance
• Available in two mesh variants for different power classes
• Plug-and-play installation at factory mounting points

Specifications:

• Net dimensions: 515 mm x 367[274] mm x 95 mm
• Charge air volume: 16.5 liters (+142% vs. OEM)
• Enlarged flow area: +120% vs. OEM
• Weight: 18 kg
• Connection diameter: 68 mm on both sides
• Mesh type: Competition high-performance mesh (two variants)
• Approval: Includes parts certificate

Kit comes with::

• 1x intercooler together with cross member
• 1x set of mounting hardware
• 1x set of license plate holders
• 1x installation instructions
• 1x parts certificate

Vehicle Compatibility:

• Audi TTRS 8J (2009-2014)
