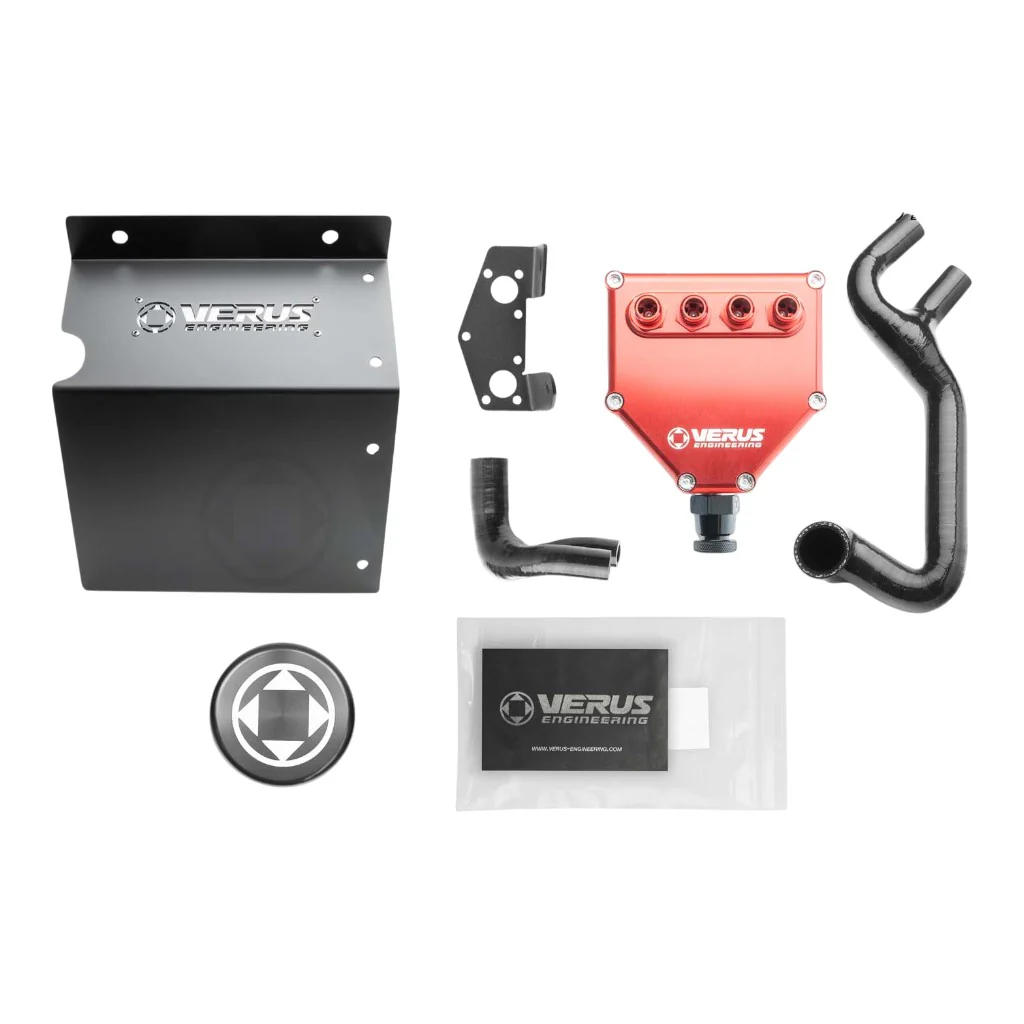

VERUS ENGINEERING A0770A Turbo Heat Shield with AOS Bundle for TOYOTA Supra 2020

Description VERUS ENGINEERING A0770A Turbo Heat Shield with AOS Bundle for TOYOTA Supra 2020

The VERUS ENGINEERING A0770A Turbo Heat Shield with AOS Bundle is developed for the 2020 Toyota GR Supra 3.0L equipped with the factory two-port intake manifold. This bundle combines multiple components located in the same engine bay area into a cohesive solution focused on thermal management and crankcase ventilation. The turbo heat shield is designed using in-house scan data to achieve an OE-like fit and protect surrounding components from turbine heat.

The included Air Oil Separator (AOS) is engineered to reduce blow-by contamination in the intake system of the B58 engine. By separating oil from crankcase vapors before they re-enter the intake tract, the system helps maintain intake air quality and reduce the negative effects associated with oil ingestion. A resonator delete machined from aluminum is also included to create space for the AOS and provide a finished appearance.

• Bundle combines turbo heat shielding, air oil separation, and resonator delete
• Turbo heat shield manufactured from 2.0 mm stainless steel with high-temperature Cerakote coating
• OE-style fit achieved through internal scan data and precision manufacturing
• AOS utilizes multi-stage oil separation to help keep the intake system oil-free
• Resonator delete creates additional clearance and improves overall engine bay layout

Specifications:

• Vehicle Compatibility: Toyota GR Supra 2020, 3.0L, two-port manifold only
• Turbo Heat Shield Material: 304 stainless steel
• Heat Shield Thickness: 2.0 mm
• Heat Shield Finish: High-temperature Cerakote
• AOS Housing Material: CNC-machined 6061-T6 aluminum
• Oil Filtration: Four 5-micron coalescent filters
• Hoses: Preformed silicone hoses
