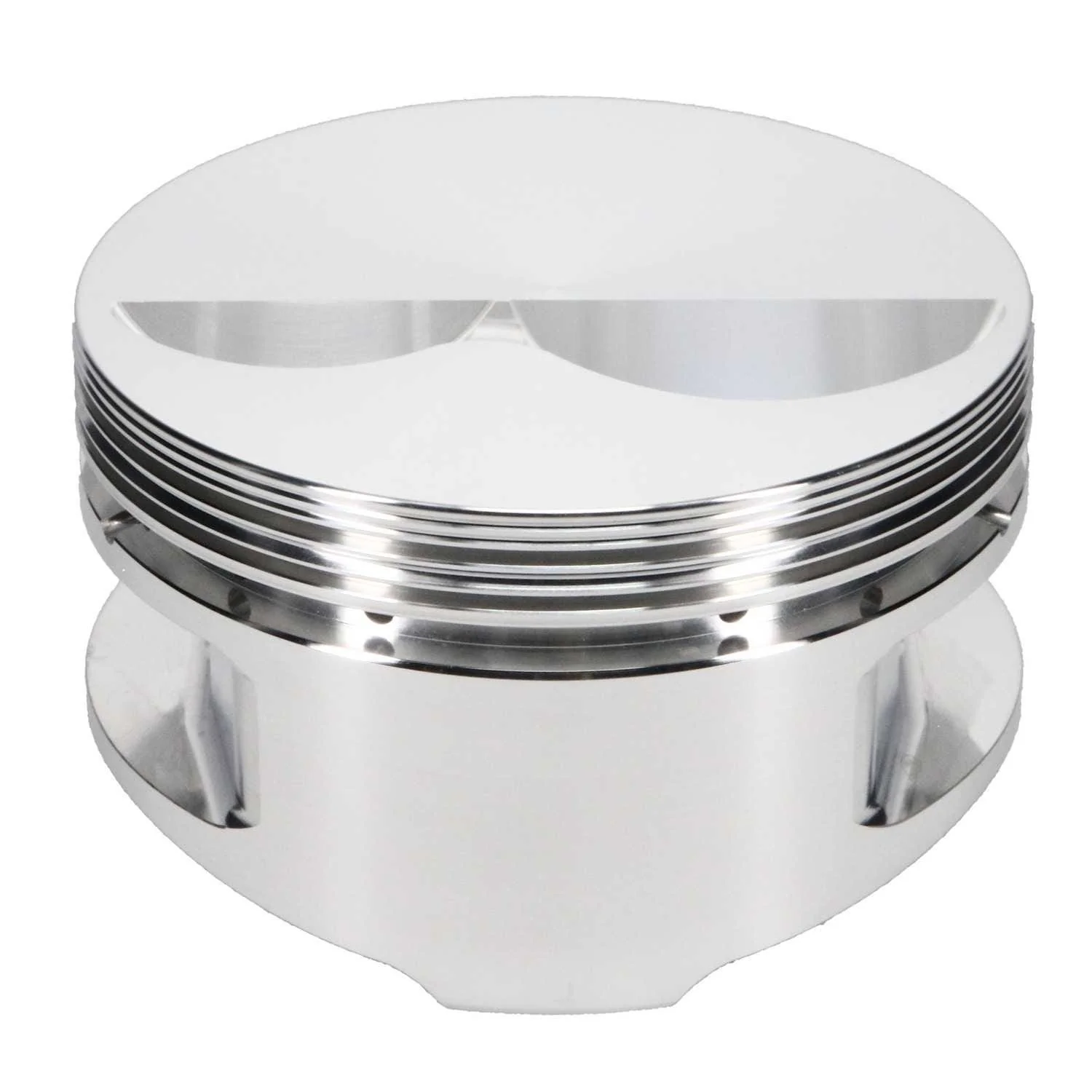

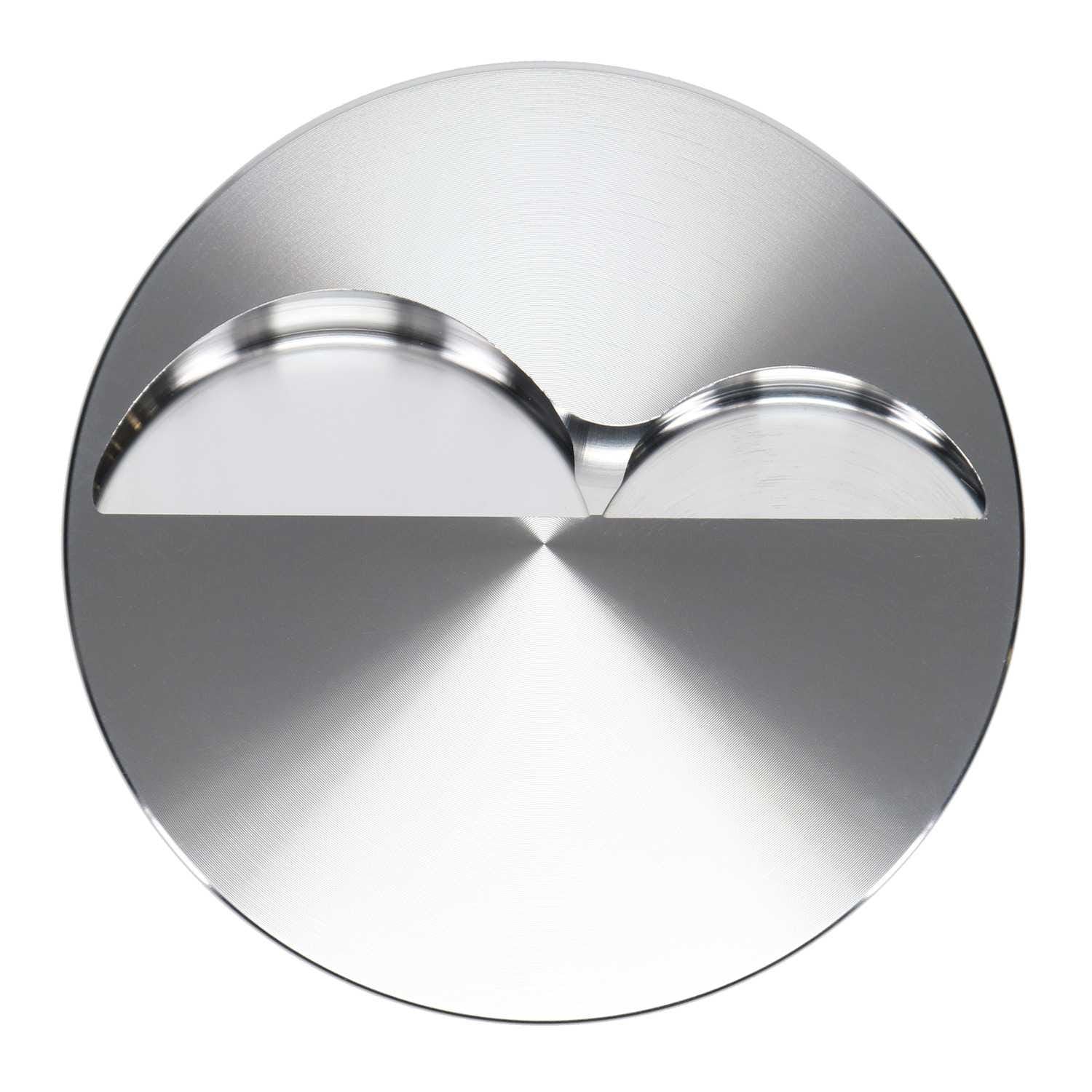

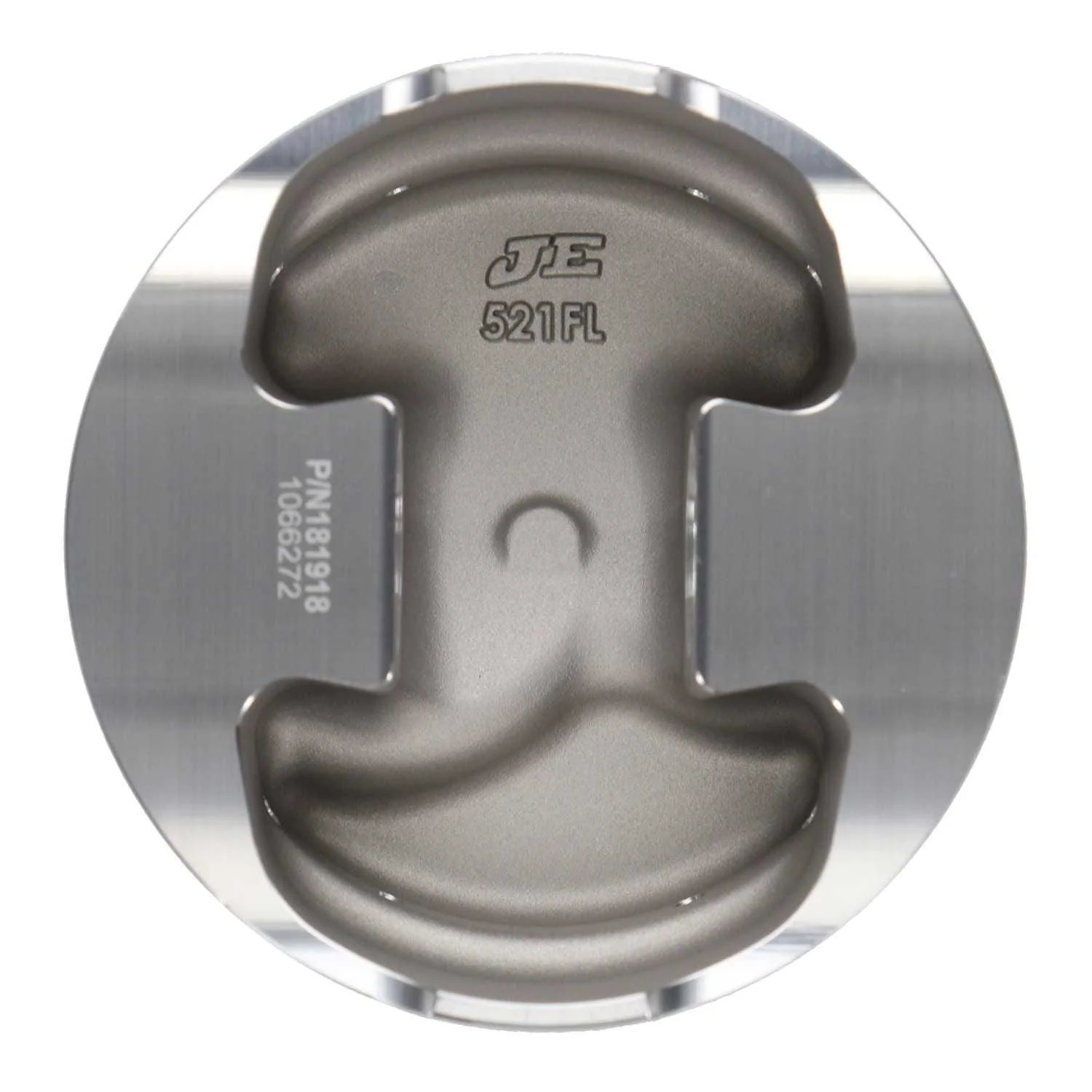

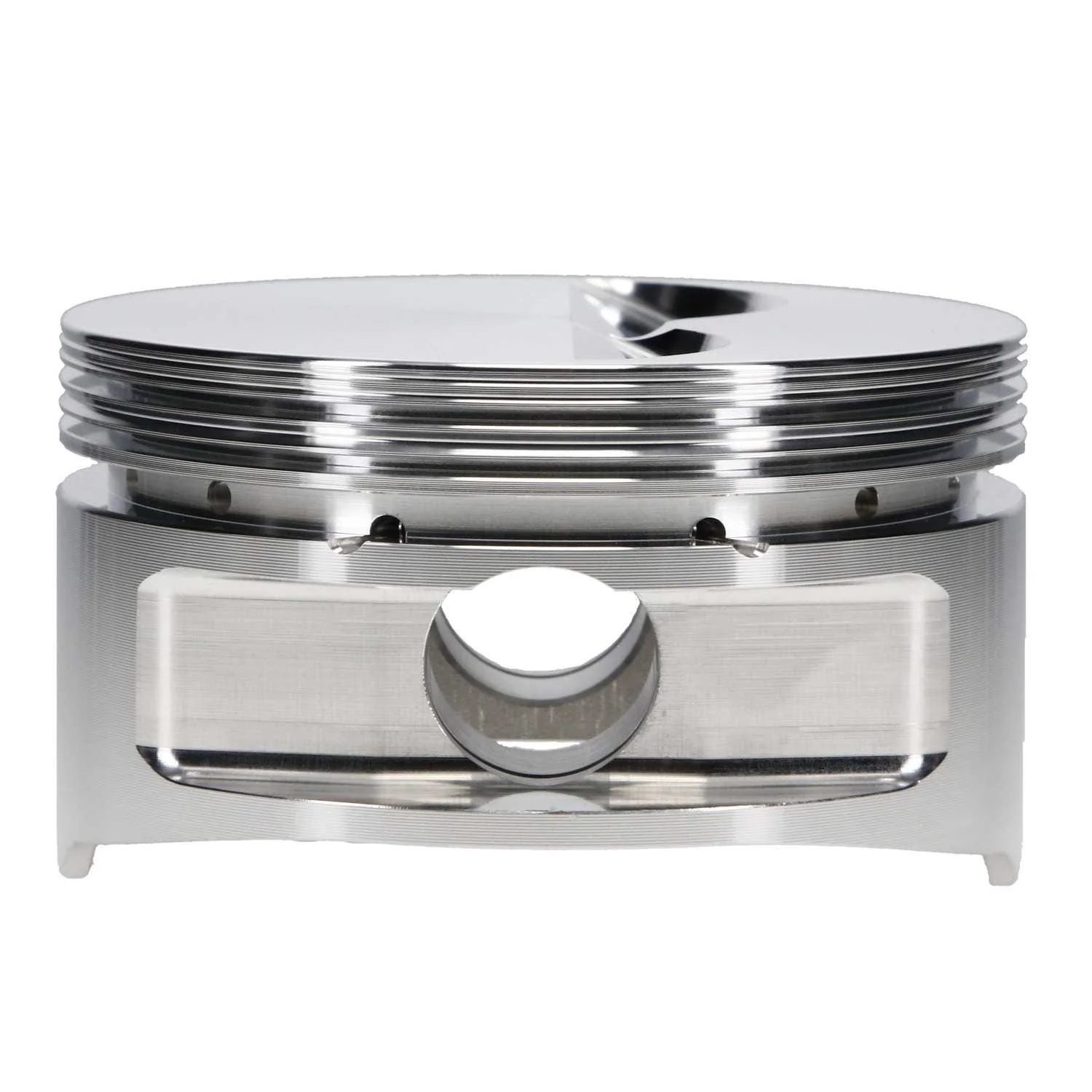

JE 338214R Piston 400 SBC FLAT TOP (Single Piece Set)
DESCRIPTION:
Piston Single, 2618, Flat Top, 4.145 Bore, 1.000 CD, 0.927, Pin Dia, Set of 1.
CHEVROLET|400 - 23°
| Bore (in) | 4.145 |
|---|---|
| Bore (mm) | 105.28 |
| Top Compression Ring Thickness | 0.0640 |
| Second Compression Ring Thickness | 0.0640 |
| Oil Ring Thickness | 0.218 |
| Forging Type | Round |
| Volume (cc) | -5.00 |
| Series | JE Pistons |
| Piston Head Type | Flat Top |
| Pin Diameter (IN) | 0.927 |
| Compression Height | 1.000 |
| Make | CHEVROLET |
| Wrist Pin Style - floating or press fit | Floating |
| Wall Type | STRAIGHT |
| Wall Thickness (IN) | 0.150 |
| Ringset Part Number | J10008-4145-5 |
| Ring Brand | ProSeal |
| Ringset Included | No |
| Retainer Thickness | 0.042 |
| Retainer Lock Style | Spiro Lock |
| Retainer Lock Part Number | 927-042-CS |
| Retainer Diameter (IN) | 0.927 |
| Replacement Single Piston | 338214R |
| Piston Pin Inside Diameter | 0.627 |
| Piston Pin Material | 5115 LOW CARBON STEEL, CASE HARDENED |
| Piston Material | 2618 |
| Piston Pin Length (IN) | 2.750 |
| Pin Offset | No |
| Pin Brand | JE Pistons |
| Pin Part Number | 927-2750-15-51S |
| Pin Included | Yes |
| Pin Diameter (mm) | 23.55 |
| Oil Rail Support Part Number (If Required) | 4125-183 |
| Oil Rail Support Included | Yes |
| Oil Rail Radial Wall | 0.183 |
| Deck Clearance | 0.000 |
| Brand | JE Pistons |
