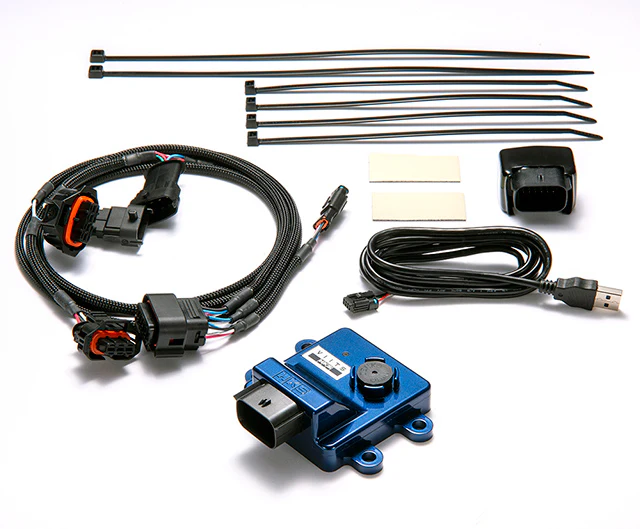

HKS VIITS-EL001 BOOST CONTROLLER VIITS 31214T for 312A3 ABARTH 595

Code No. VIITS-EL001

The easy coupler-on boost controller synchronizes power and sound!

Concepts

• It can be easily boosted up by simply connecting with a coupler.
• The boost-up data is preset in the BOOST CONTROLLER unit.
• By using the Easy Writer, you can edit the boost-up data.
• Even after installing this product (or wiring it), it can be returned to the stock status by using the return connector included in the kit.

NOTE:
・The Easy Writer is not packaged with the product.
・To connect to the PC, use the USB connection harness included with the product.







Features

• Boost up turbocharged vehicles : Install the BOOST CONTROLLER between the "pressure sensor" and "pressure sensor harness”, the boost pressure will be increased.
• Rewriting boost-up data : For customers who are not satisfied with the data preset in the unit, we have prepared a special Easy Writer for editing the boost-up data. By connecting the BOOST CONTROLLER to a PC with the USB connection harness included in the product, you can easily edit the boost-up data with Easy Writer. Windows PC (Windows 10, 8.1, 8, or 7) is required.
• Status verification LED : The LED light makes it easier to monitor the status of the unit.

NOTE:
・This product is designed for stock vehicles and vehicles equipped with HKS products.
・This product is for a stock ECU data and not available to use with a customized data prepared by a Re-Flash tool.



Specialized Easy Writer (for free)

Performance data

• HKS Data Preset for ABARTH 595 COMPETIZIONE (Japan spec)
• The test vehicle is equipped with VIITS EXHAUST for ABARTH595 (VIITS-EX001).
• The maximum boost pressure is the average of multiple measurements taken in SPORT MODE.



	Stock	Power Editor
Power (maximum permissible level)	－	7.3kW(10.0PS)/5400rpm
Torque (maximum permissible level)	－	18.5Nm(1.9kgf・m)/3900rpm
Peak power	119.6kW(162.7PS)/4800rpm	124.3kW(168.9PS)/4900rpm
Peak torque	271.9Nm(27.7kgf・m)/3300rpm	286.4Nm(29.2kgf・m)/3900rpm
Peak boost pressure	135.3kPa(1.38kgf/cm2)	145.1kPa(1.48kgf/cm2)





Recommended BOOST CONTROLLER installation location and Pressure sensor location





Vehicle	Model	Engine	Model Year	Code No.	Manual	Remarks
ABARTH 595	31214T	312A3	17/02 -	VIITS-EL001		For ABARTH 595 COMPETIZIONE (Japan Domestic Market spec).
