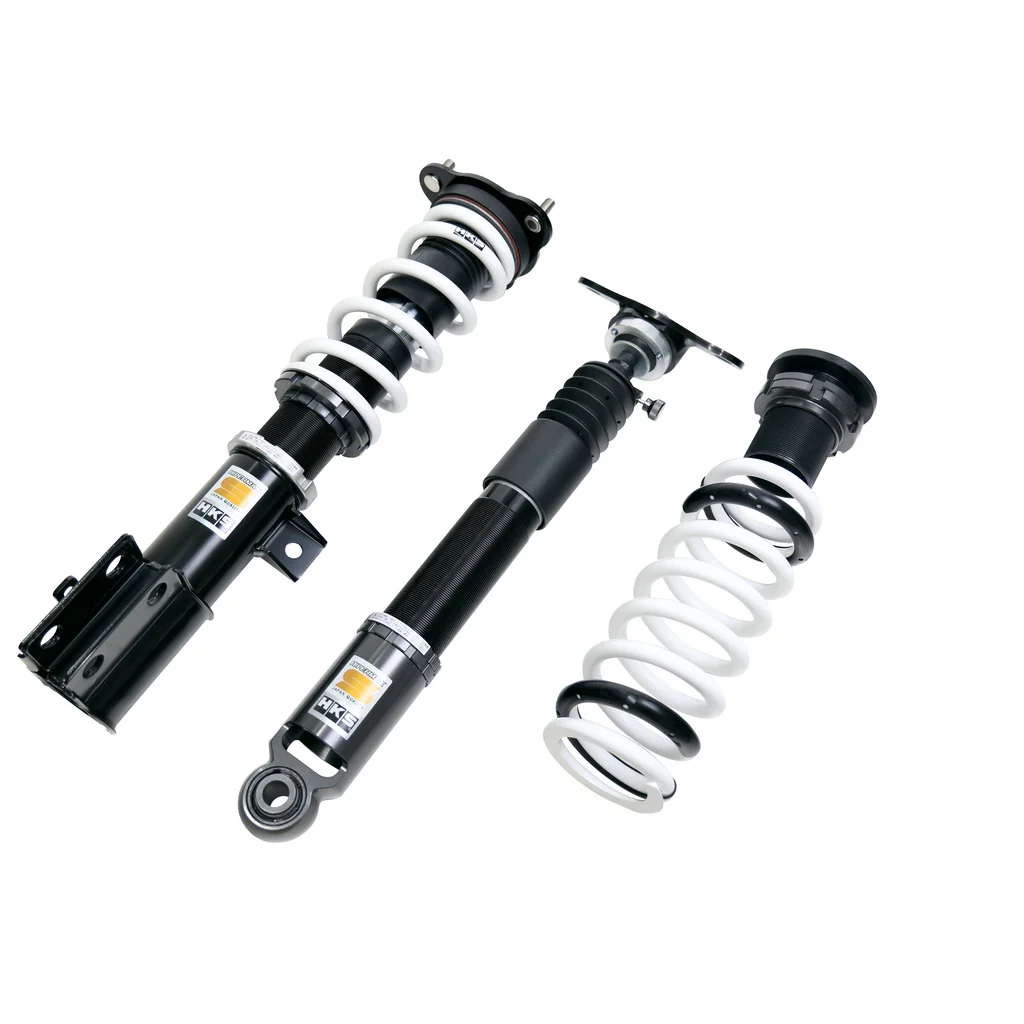

HKS 80300-AT035P Coilover Kit HIPERMAX S for TOYOTA GR Yaris Gen2 (GXPA16) 2024-

Description HKS 80300-AT035P Coilover Kit HIPERMAX S for TOYOTA GR Yaris Gen2 (GXPA16) 2024–

The HKS 80300-AT035P HIPERMAX S coilover kit introduces a pillow ball upper mount version tailored for the 2024–present Toyota GR Yaris Gen2 (GXPA16). Retaining the original HIPERMAX S performance characteristics, this version offers an added adjustable camber mechanism with a range of approximately 4°40’, allowing advanced alignment tuning and enhanced wheel fitment options. With damping characteristics designed for refined daily drivability and sporty handling, it delivers a significant improvement in roll rigidity, cornering stability, and composure under high-load conditions.

• New pillow ball upper mount with camber adjustment up to approx. 4°40’
• Balanced ride comfort and performance for street and dynamic driving
• Custom-tuned for the post-facelift GR Yaris Gen2 platform
• Validated on both manual and automatic transmission variants

Specifications:

• Spring Rate (N/mm (kgf/mm)): Front = 69 (7) / Rear = 59 (6)
• Spring Free Length (mm): Front = 200 (Linear Coil) / Rear = 250 (Linear Coil)
• Ride Height at Shipment (mm): Front = -27 (Range: 0 to -57) / Rear = -26 (Range: 1 to -59)
• Upper Mount: Front = Adjustable Camber Pillow / Rear = Rubber
• Spring Rate Change at Shipment (Available Rates N/mm (kgf/mm)): Front = +10 (1) / Rear = +10 (1)

Remarks:

• Not compatible with the early model (up to 2024/03) HIPERMAX S (80300-AT025)
