FERREA S2032 Valve Spring SB SO 1290 130/337 LT2 BH for CHEVROLET Corvette (C8)

Description FERREA S2032 Valve Spring SB SO 1290 130/337 LT2 BH for CHEVROLET Corvette (C8)

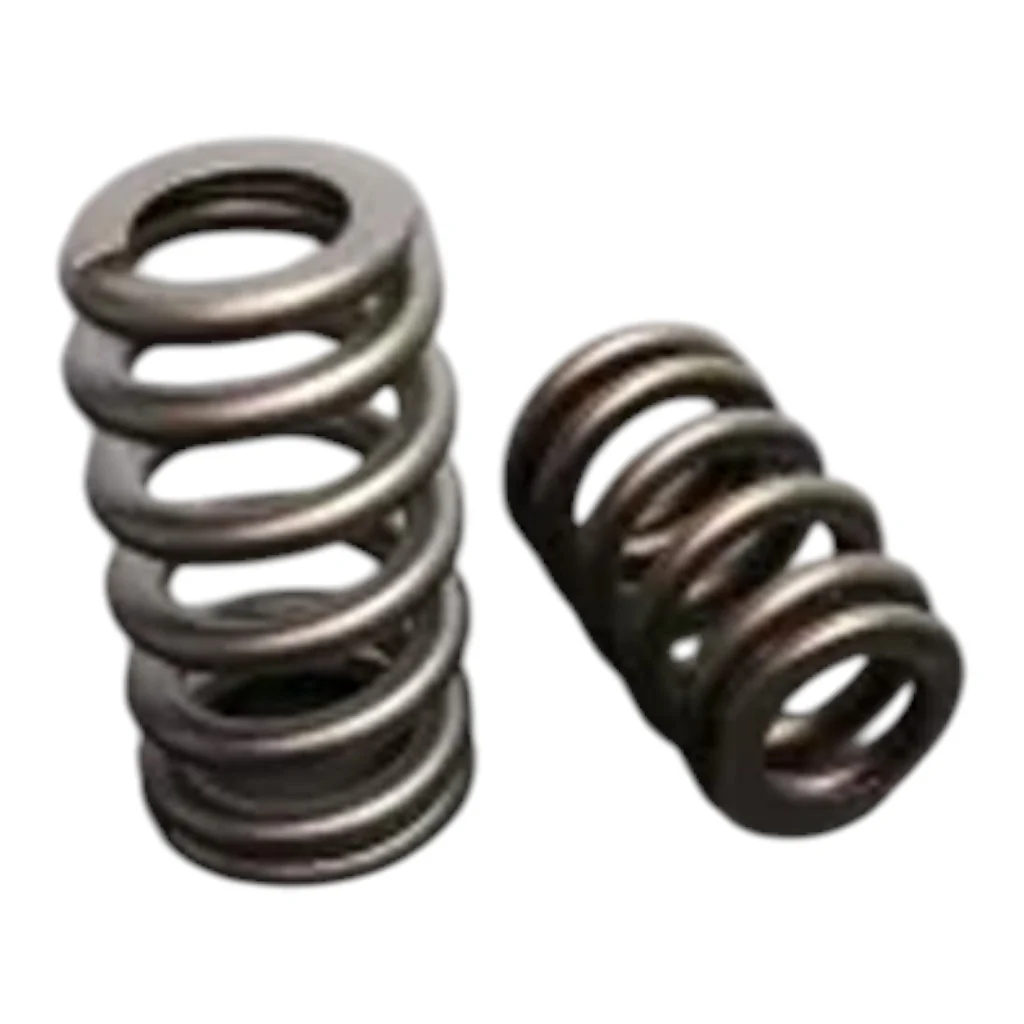

The FERREA S2032 valve spring is engineered for the Chevrolet Corvette C8 LT2 small-block engine. This single beehive spring is manufactured from ovate PAC alloy with a nitrided finish, providing durability for high-lift and extreme-load applications. The design incorporates additional processing to support demanding performance environments while maintaining stable valve control at elevated RPM.

• Single beehive construction with ovate wire profile
• PAC alloy with nitrided surface for increased strength
• Designed for high-lift and extreme-application use
• Requires dedicated FERREA retainers and spring seat locators

Specifications:

• Outside Diameter: 1.050 / 1.290
• Inside Diameter: 0.650 / 0.885
• Seat Pressure: 130 lbs @ 1.900"
• Open Pressure: 337 lbs @ 1.150"
• Rate: 313 lbs/in
• Coil Bind: 1.080"
• Max Net Lift: 0.650"
• Required Components: Ferrea Steel Retainer E10029 or Titanium Retainer E12014; Spring Seat Locators SL1184 and SL1183 (Hat Seal to be discarded)
