EVENTURI EVE-Z4MABX-CF-INT Hybrid Carbon Airbox with Full Carbon Intake for BMW Z4M (E86)
Description EVENTURI EVE-Z4MABX-CF-INT Hybrid Carbon Airbox with Full Carbon Intake for BMW Z4M (E86)

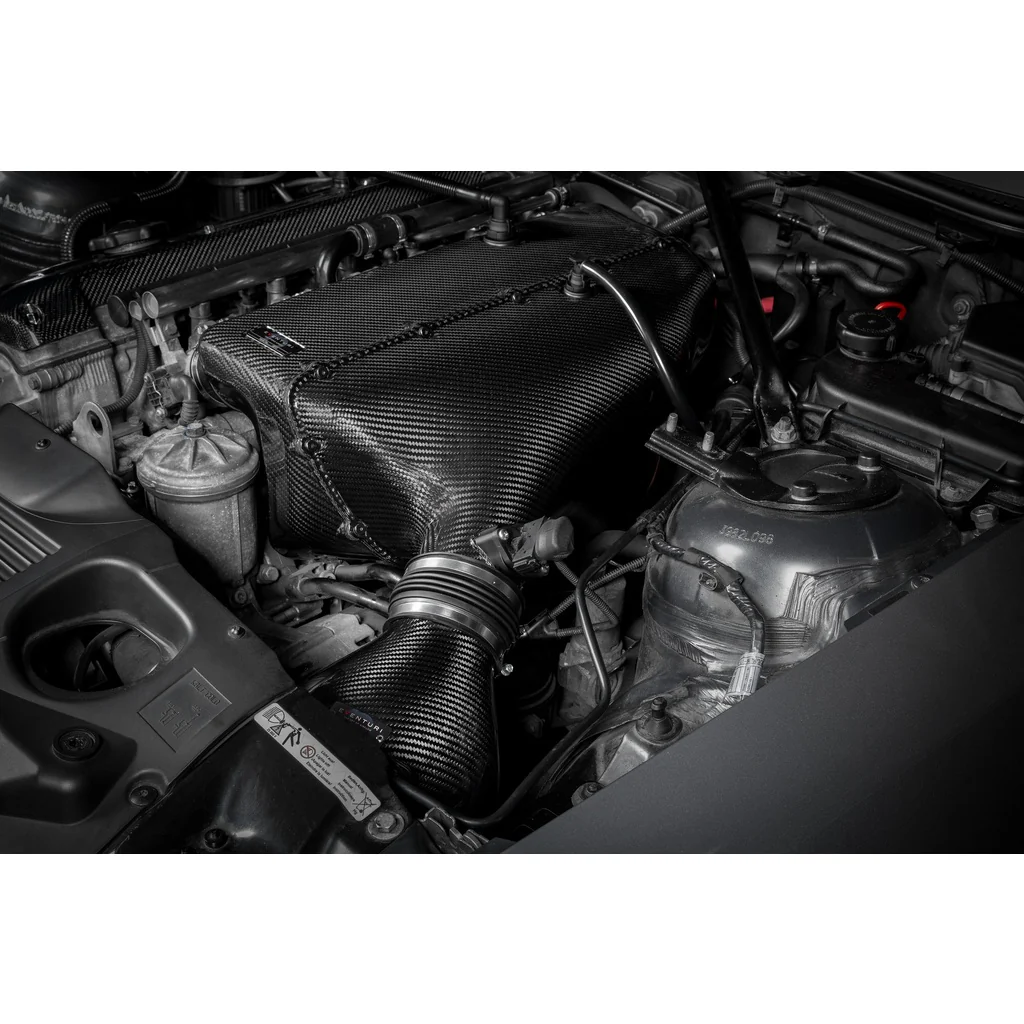

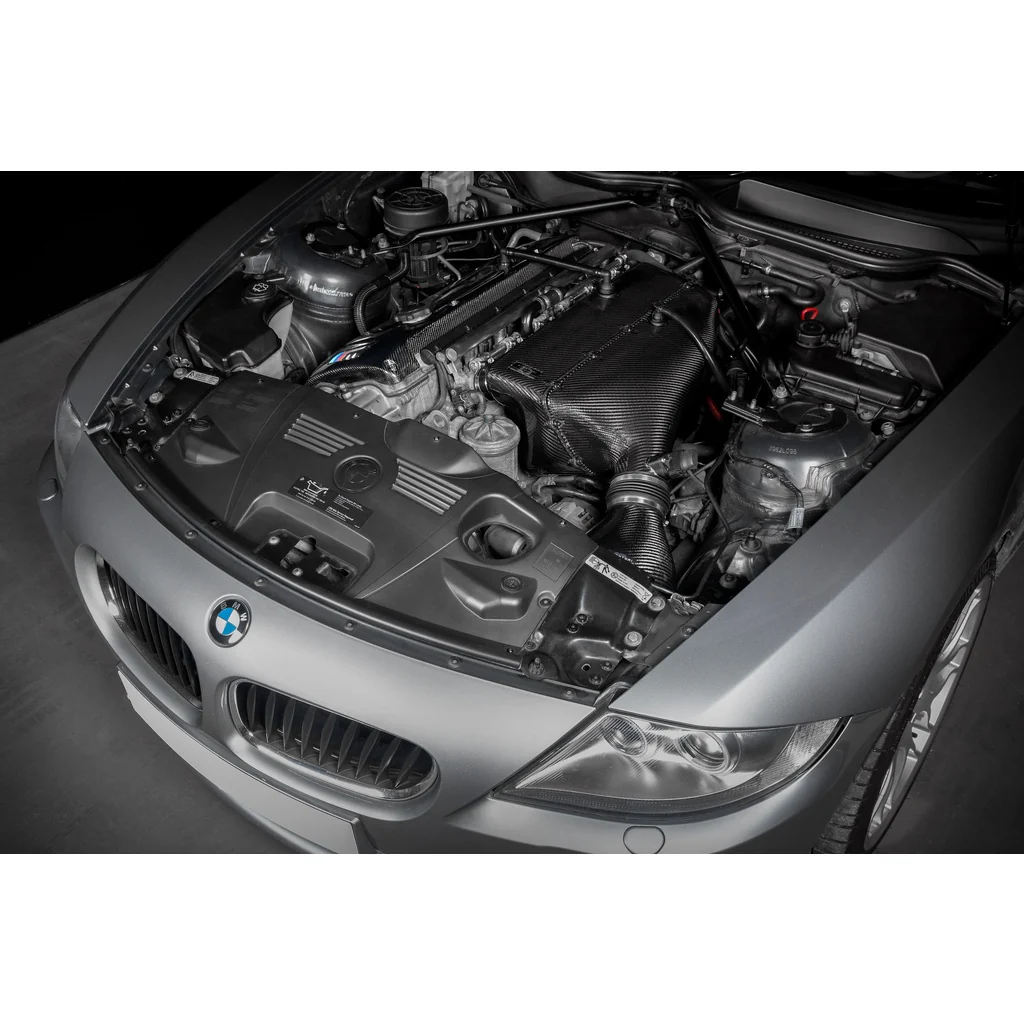

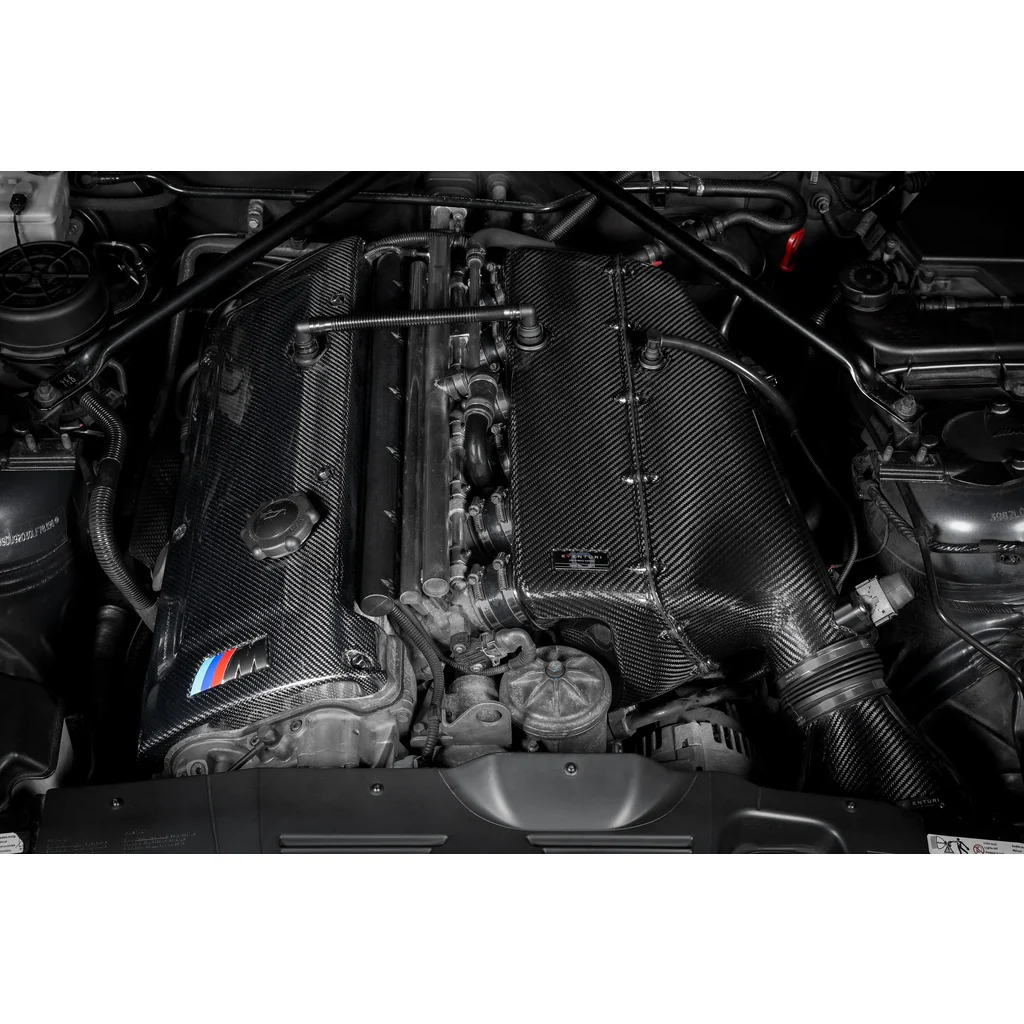

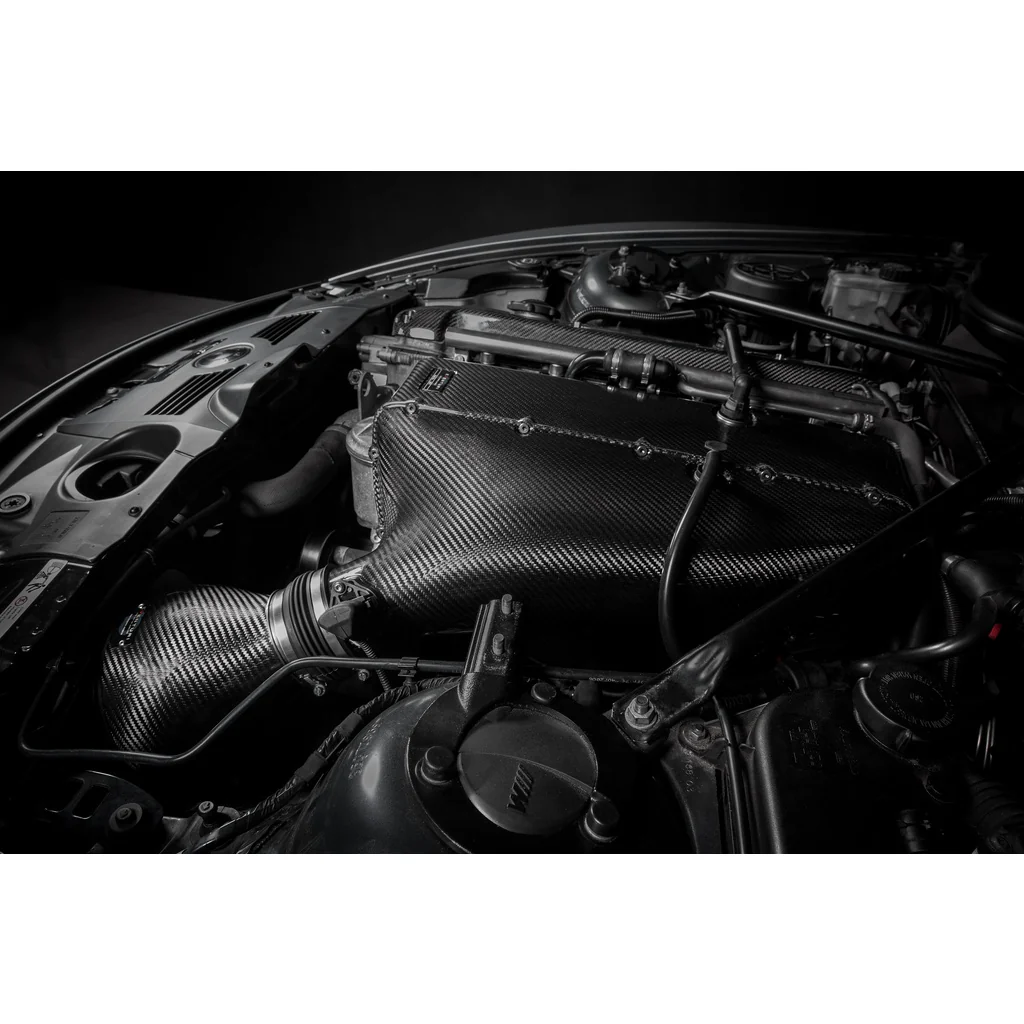

The EVENTURI Hybrid Airbox System is developed for the BMW E85 Z4M, combining the characteristic CSL-style induction sound with the functionality of a conventional intake system. The design retains the OEM MAF sensor, eliminating the need for ECU remapping while maintaining stable throttle response and consistent drivability. The system improves airflow efficiency and delivers reliable performance under varying driving conditions.

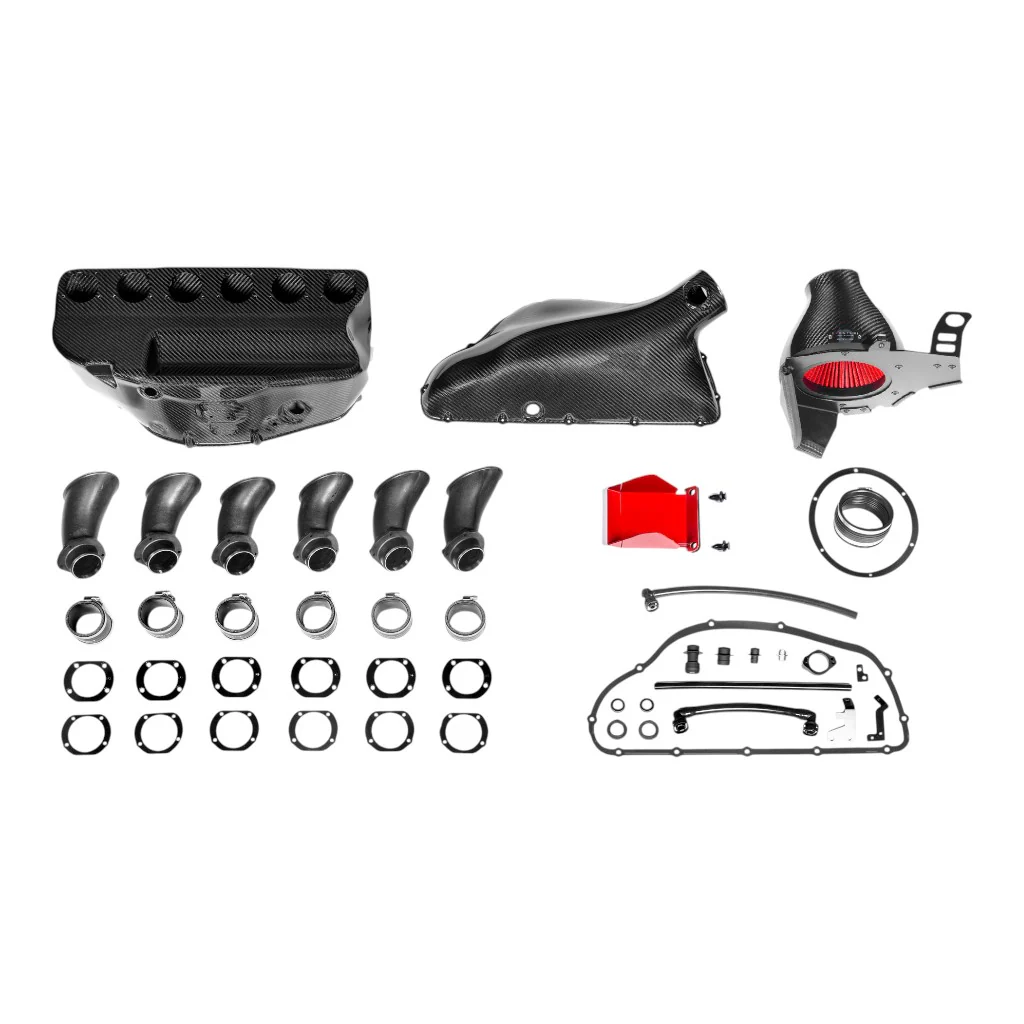

Complete package
The system includes all required components for installation, providing a plug-and-play solution without the need for additional ECU tuning or breather modifications.
- Carbon fiber main airbox
- Carbon fiber airbox snorkel with MAF tube
- Thermoplastic trumpets with stainless steel reinforcement rings
- Carbon fiber filter housing
- Dry high-flow air filter
- Cold air scoop
- Stainless steel brackets and flanges
- CNC-machined breather adapters
- EPDM flexible coupler
- Silicone couplers
- Crankcase breather hose
- Additional vacuum tubing
Specifications:
- Performance Increase (OEM ECU tune): 20–22 hp
- Torque Increase (OEM ECU tune): 8–13 ft-lb

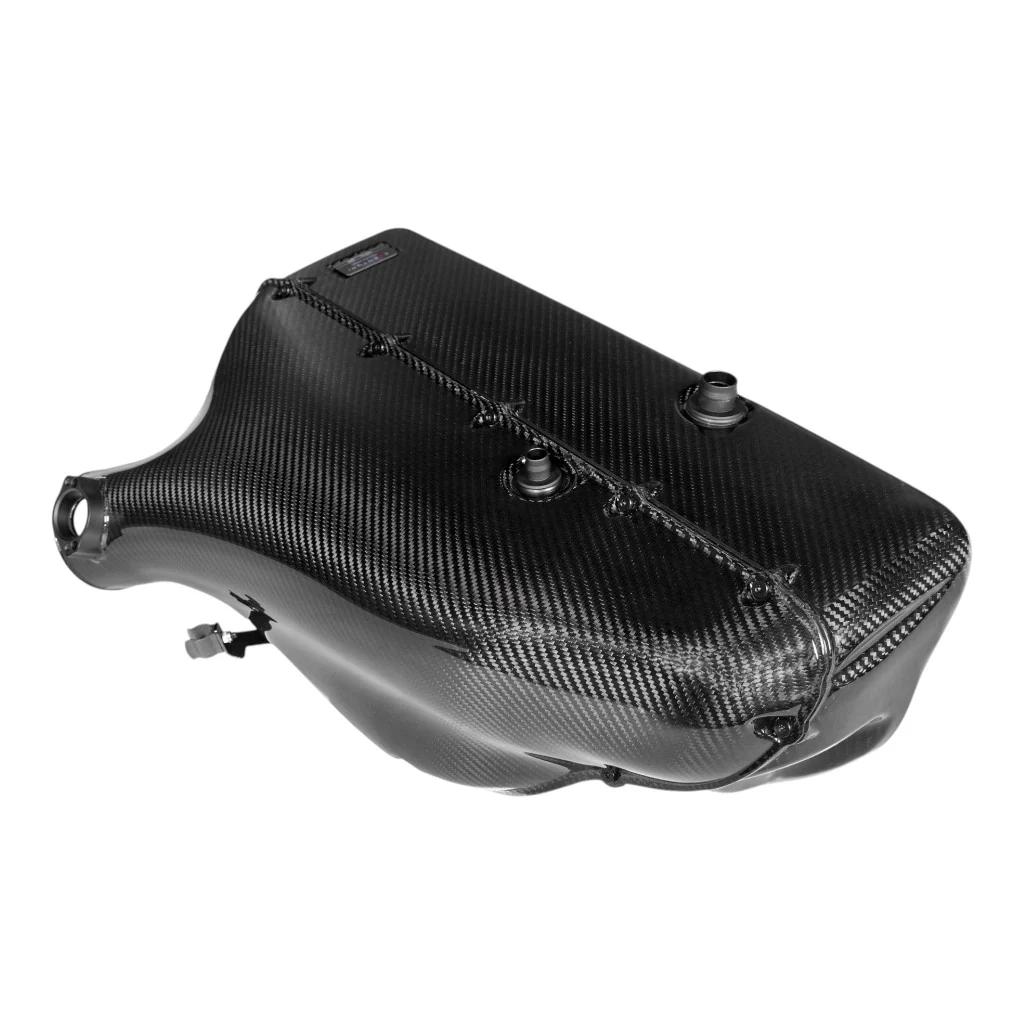

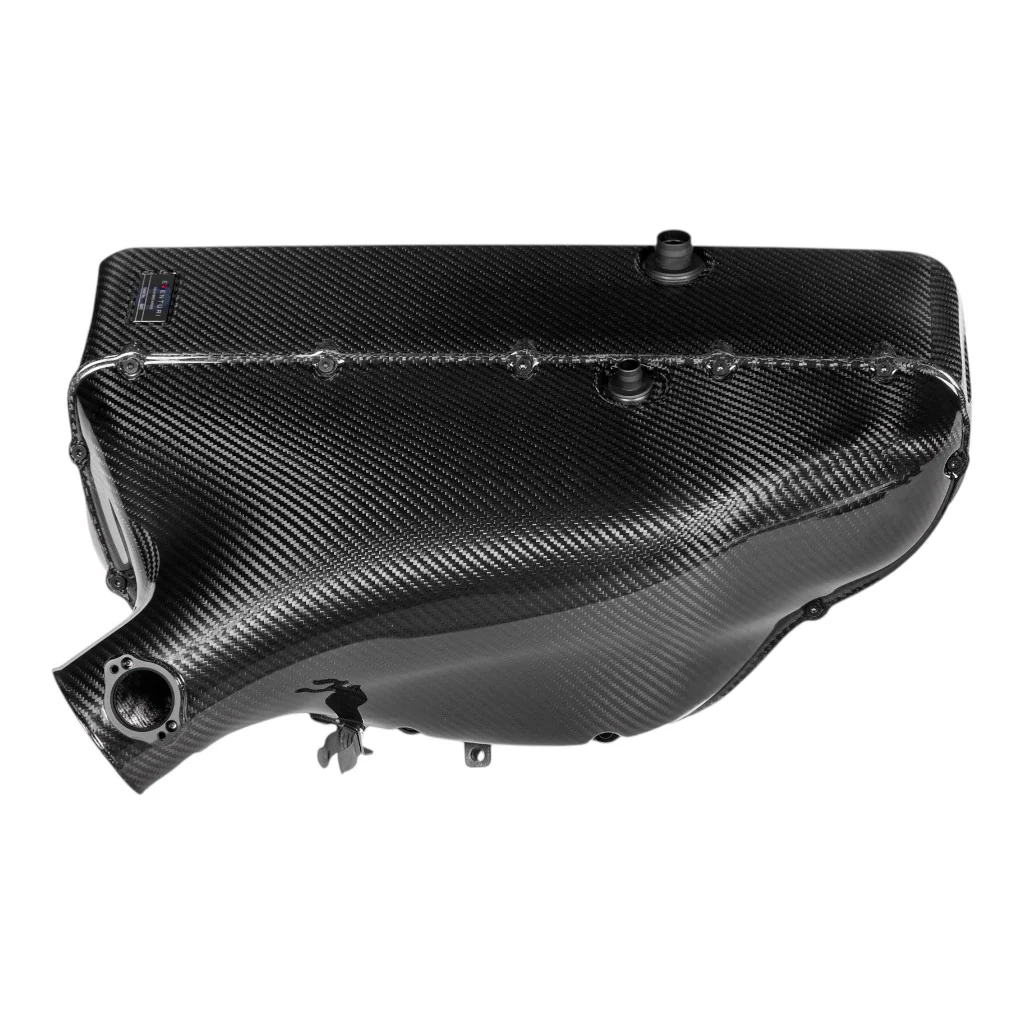

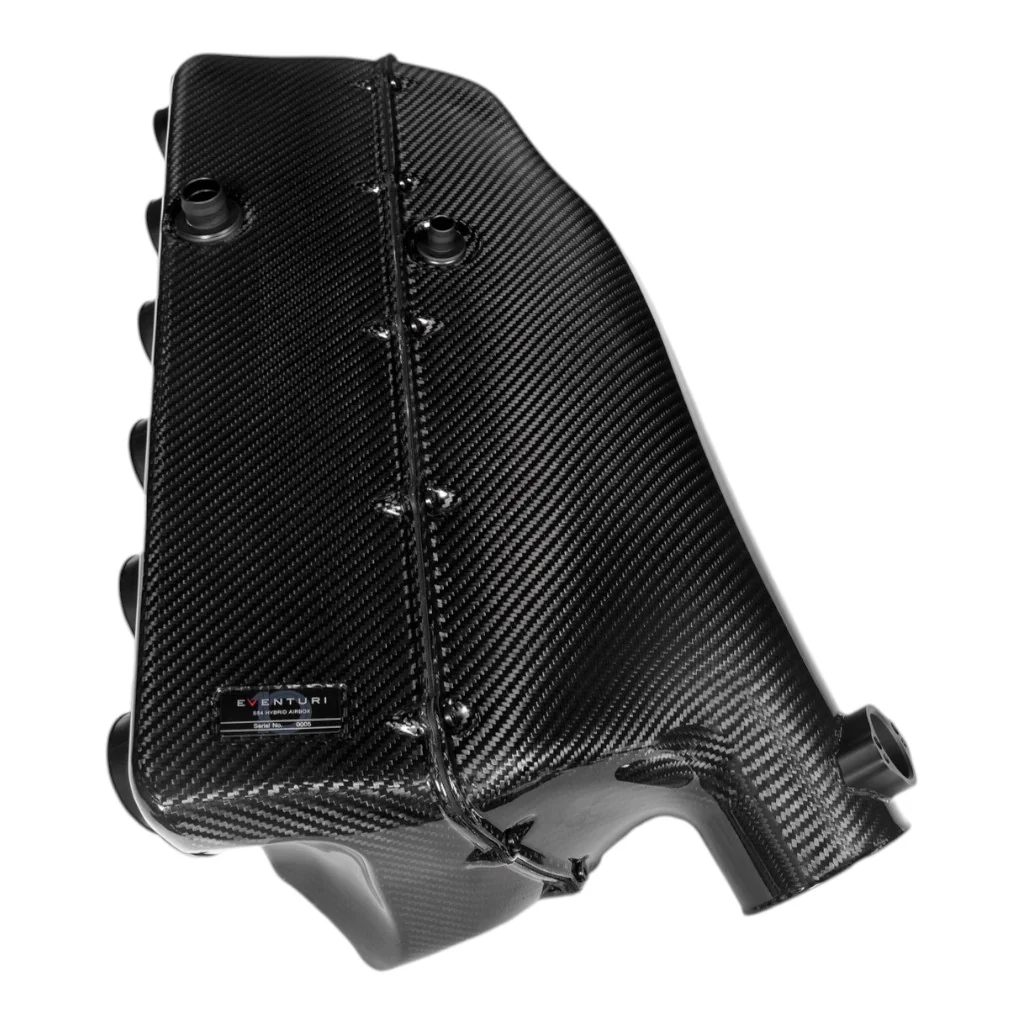

Main airbox assembly

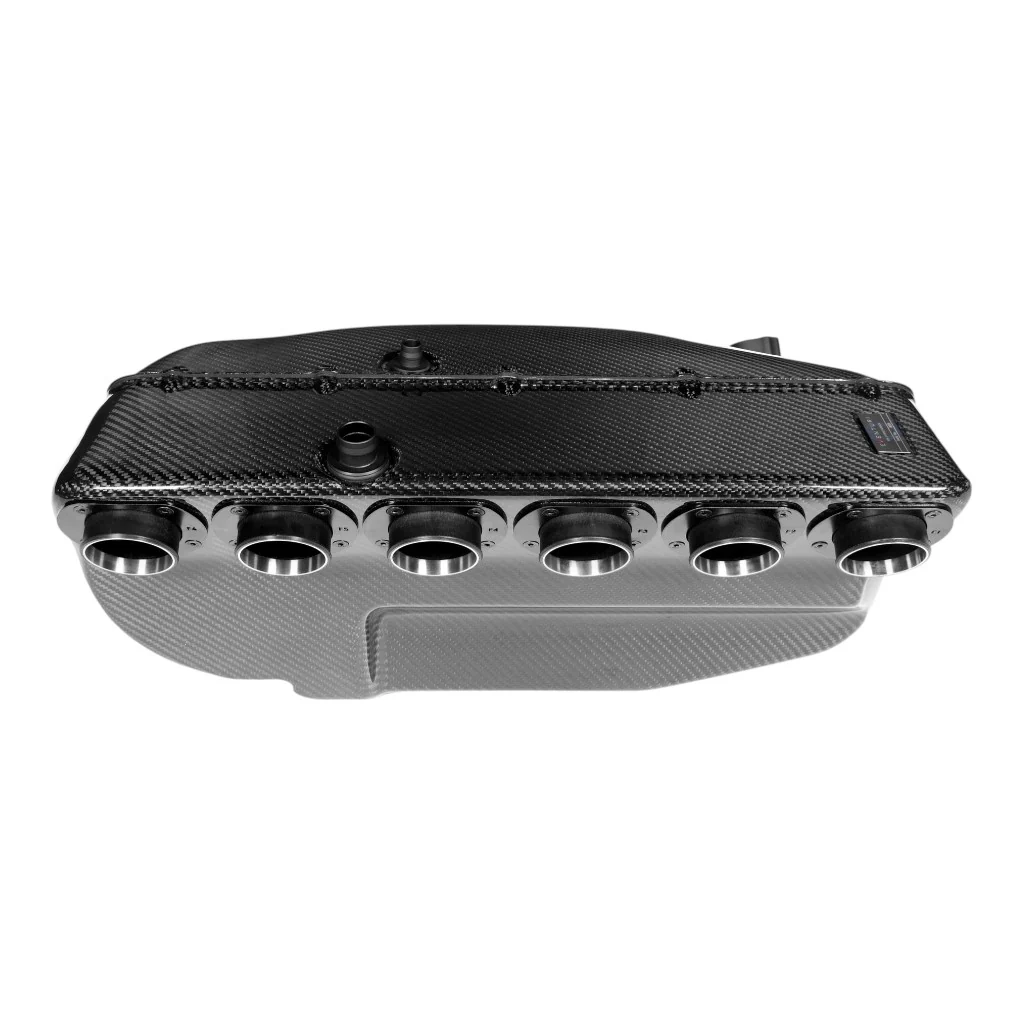

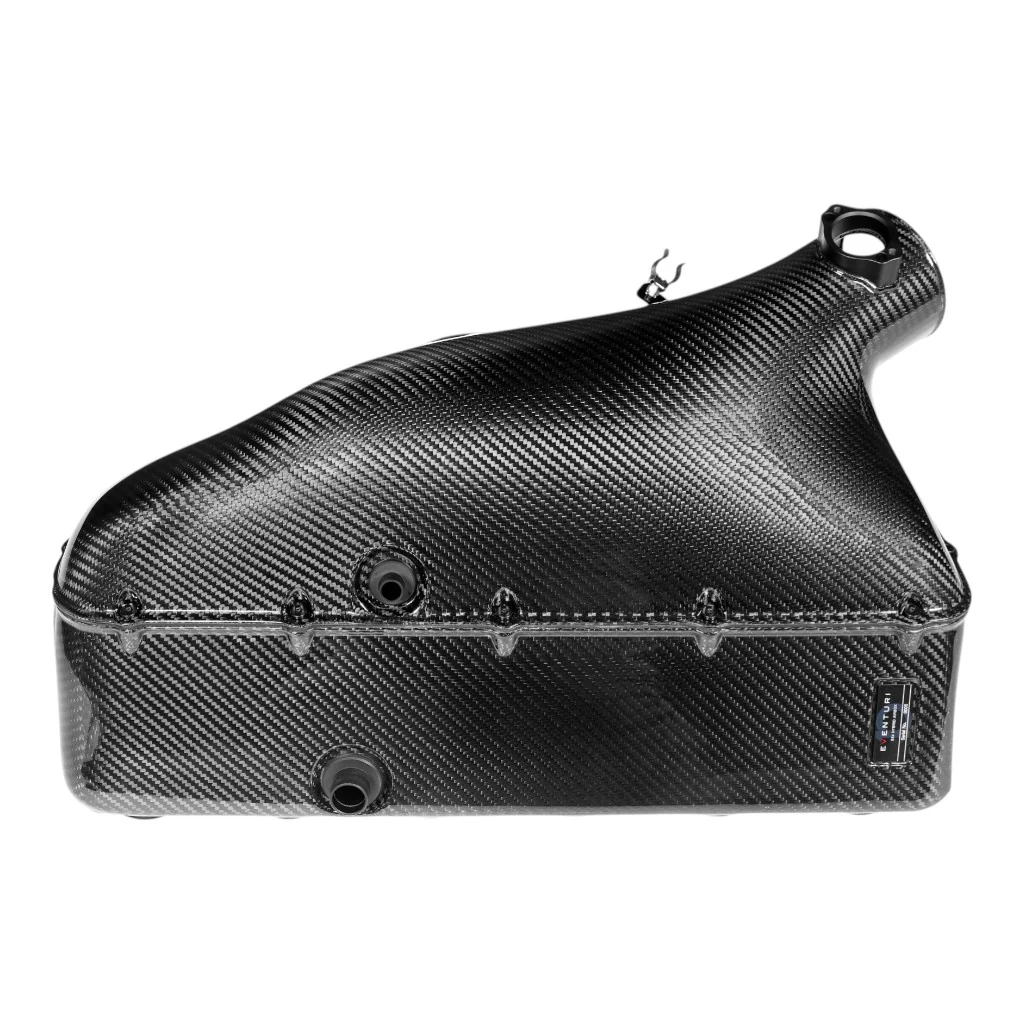

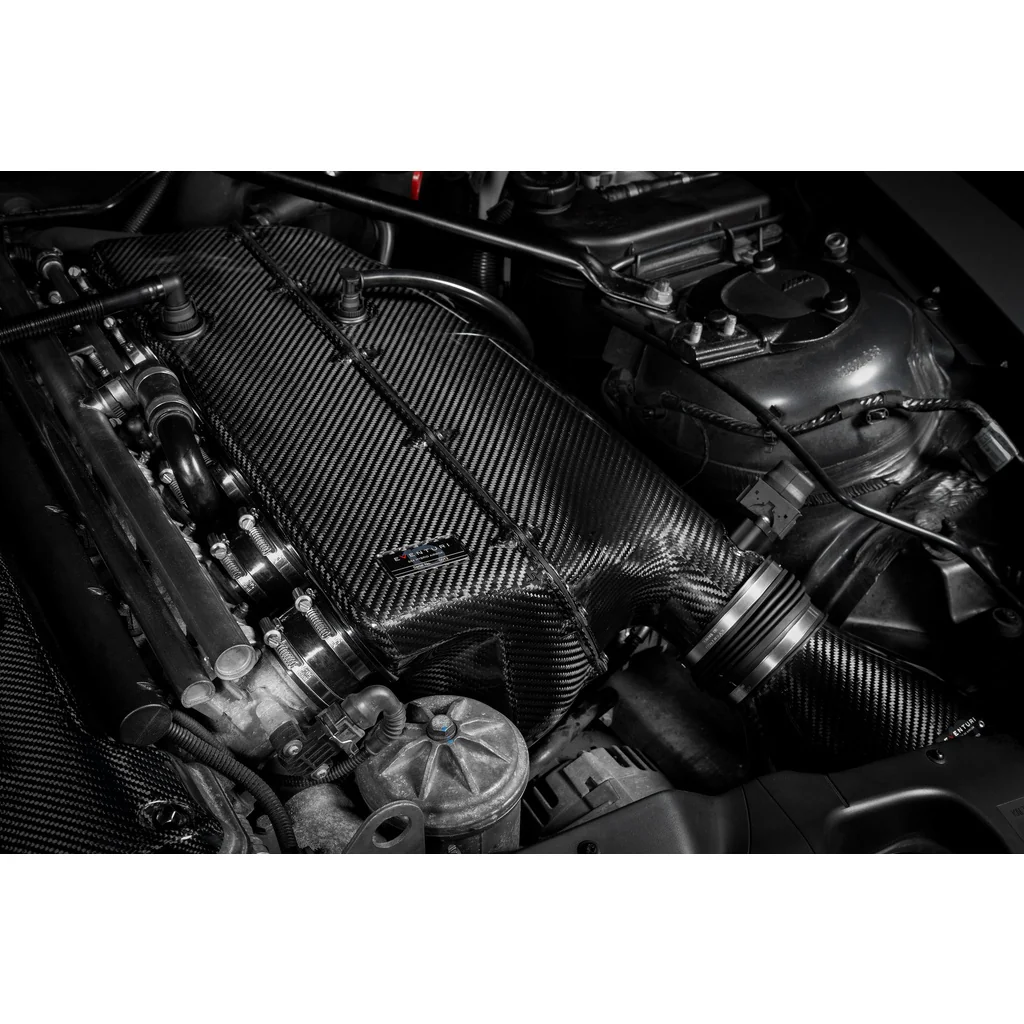

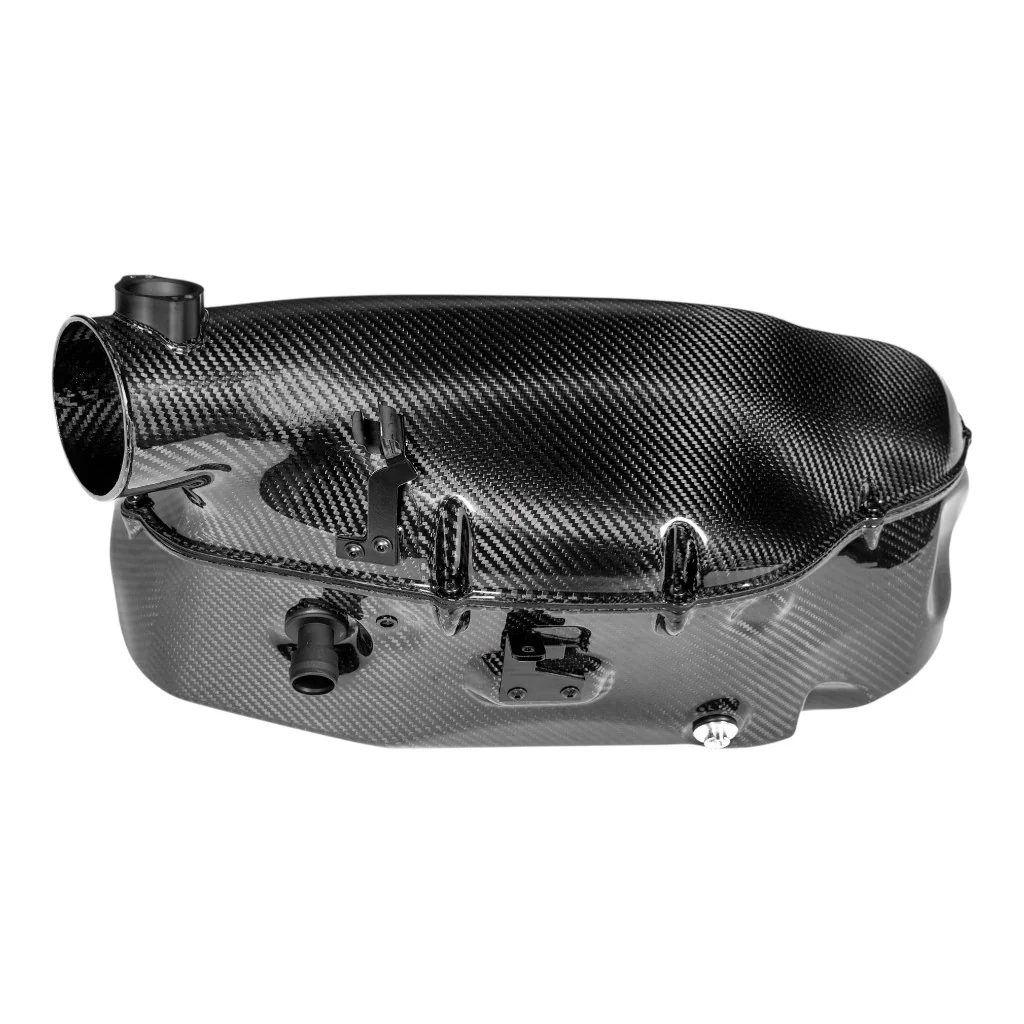

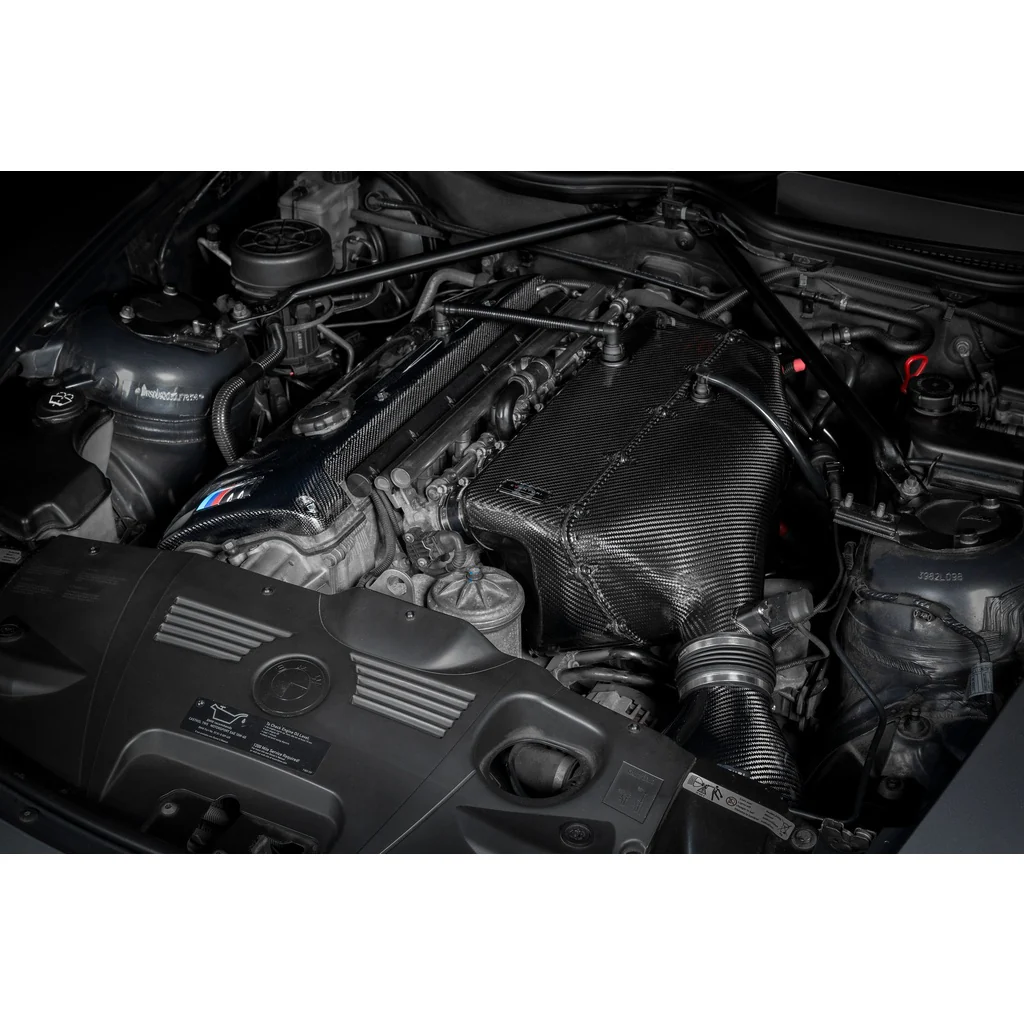

The main airbox is constructed from prepreg carbon fiber and houses six intake trumpets along with integrated breather connections. The structure is engineered to produce a resonant induction sound under load while maintaining durability. Mechanical fasteners and gaskets ensure an airtight seal resistant to heat cycles and vibration.
The intake trumpets are manufactured from thermoplastic for precise geometry and smooth internal surfaces. Stainless steel reinforcement rings prevent deformation under clamping loads.
Airbox snorkel
The carbon fiber snorkel channels airflow smoothly into the airbox and integrates the OEM MAF sensor via a CNC-machined mounting interface. The assembly is secured with vibration-resistant fasteners.
CFD optimized design
The airbox geometry has been refined using CFD simulations to ensure balanced airflow distribution, minimizing turbulence and maintaining consistent intake performance.

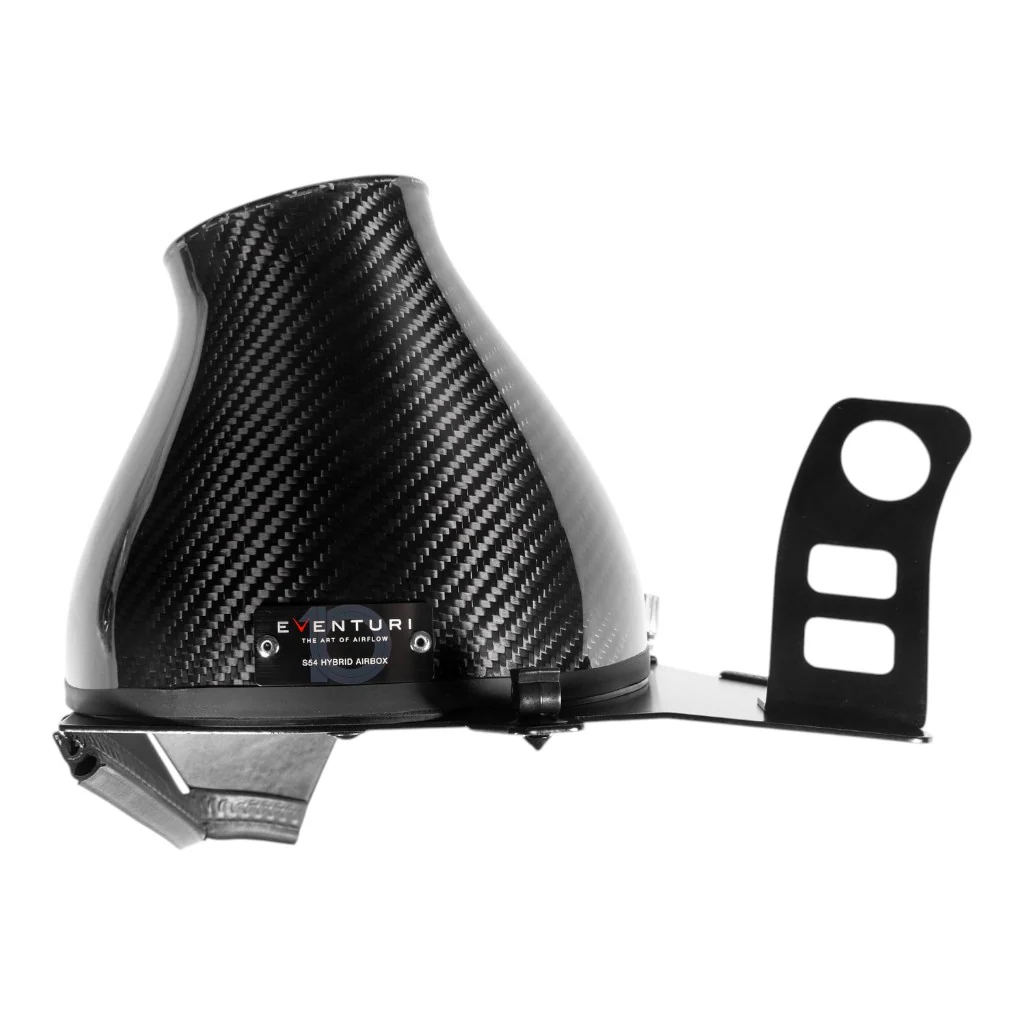

Intake housing assembly
The intake housing features a carbon fiber construction with a reverse-mounted high-flow filter. The design reduces pressure loss compared to the OEM system and ensures smooth airflow into the MAF section.
Patented technology
The filter housing incorporates a Venturi geometry with a gradual reduction in cross-sectional area, accelerating airflow while maintaining laminar flow characteristics.
Cold air scoop
The cold air scoop directs ambient air into the intake inlet from behind the front grille, contributing to lower intake temperatures and improved airflow supply.
