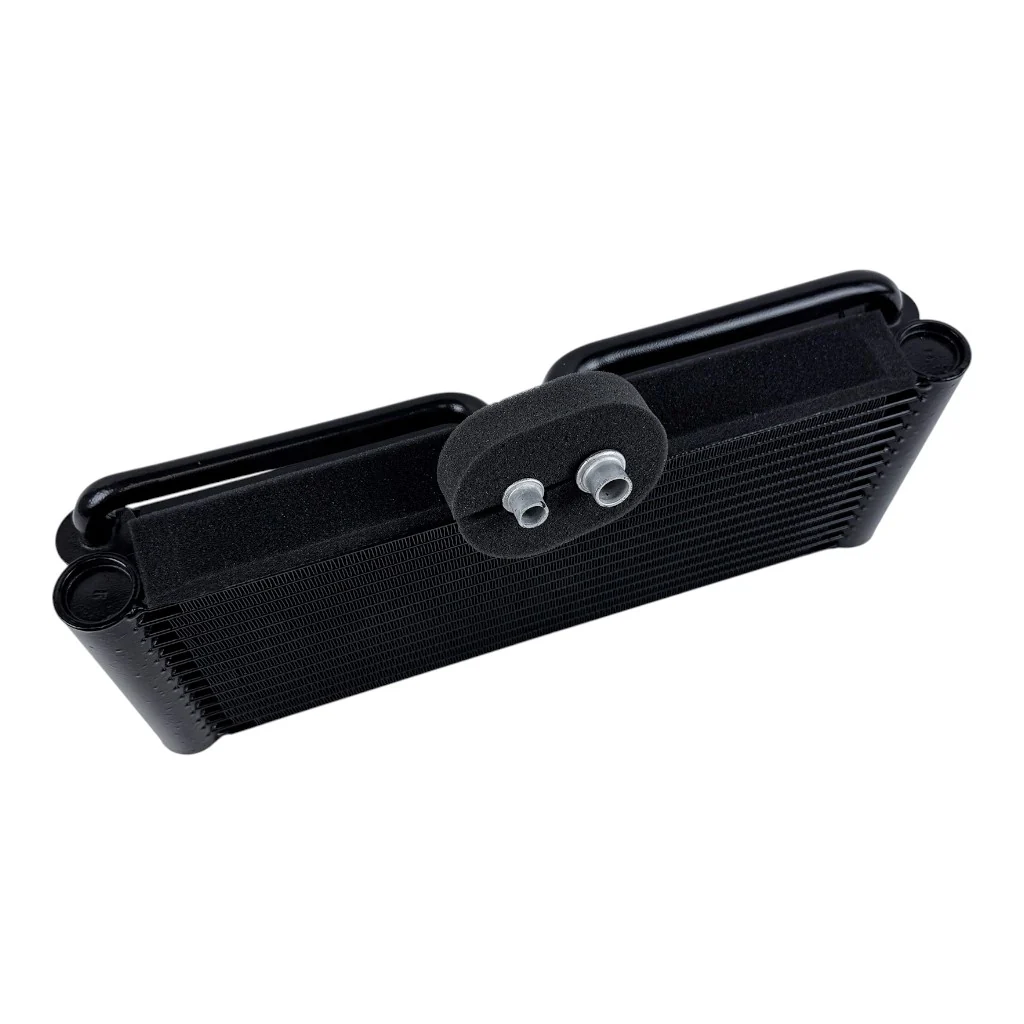

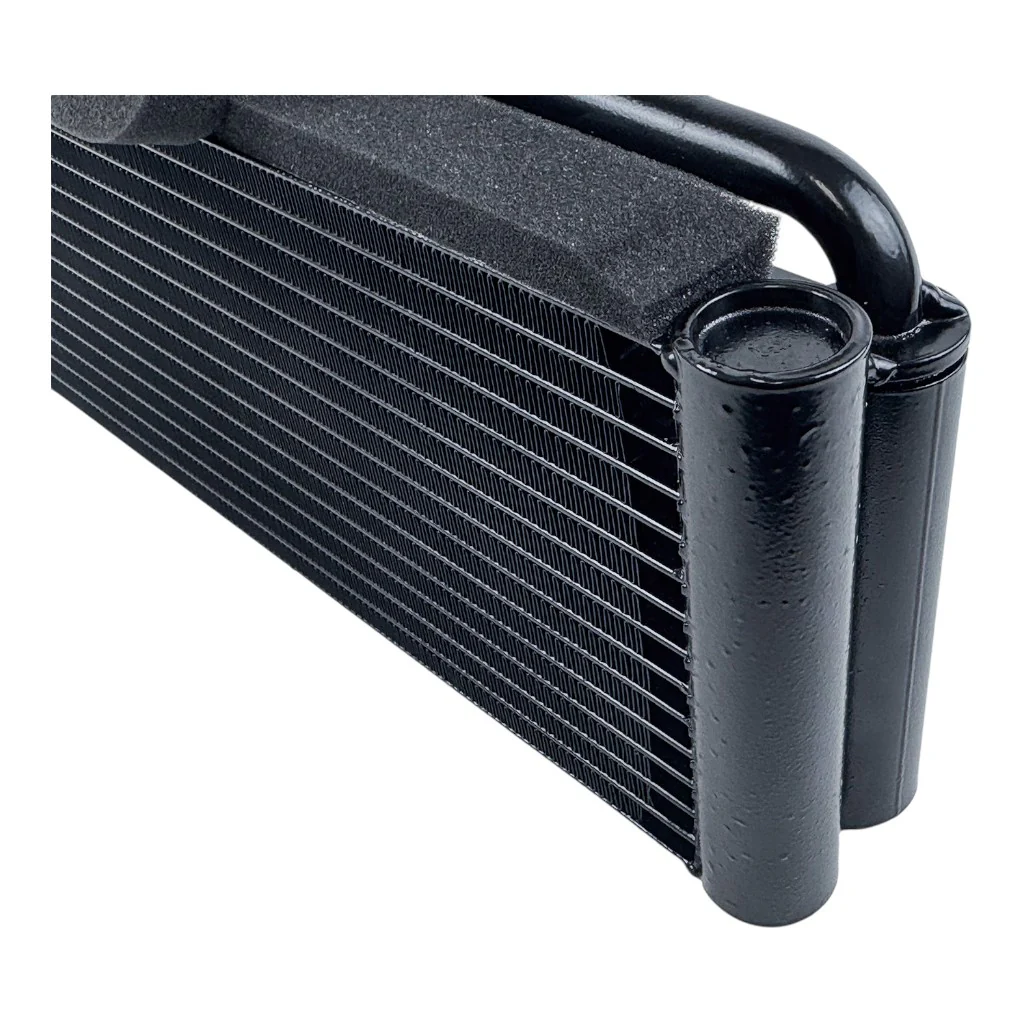

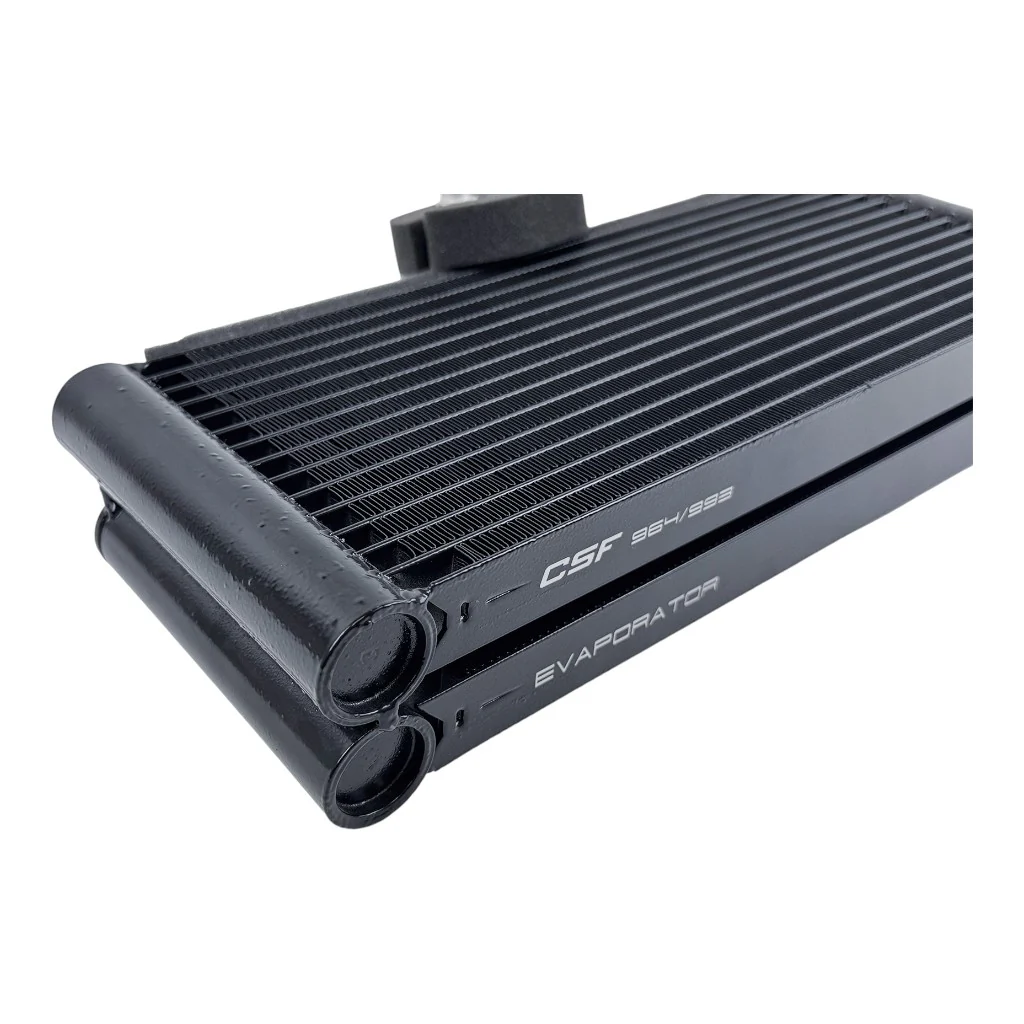

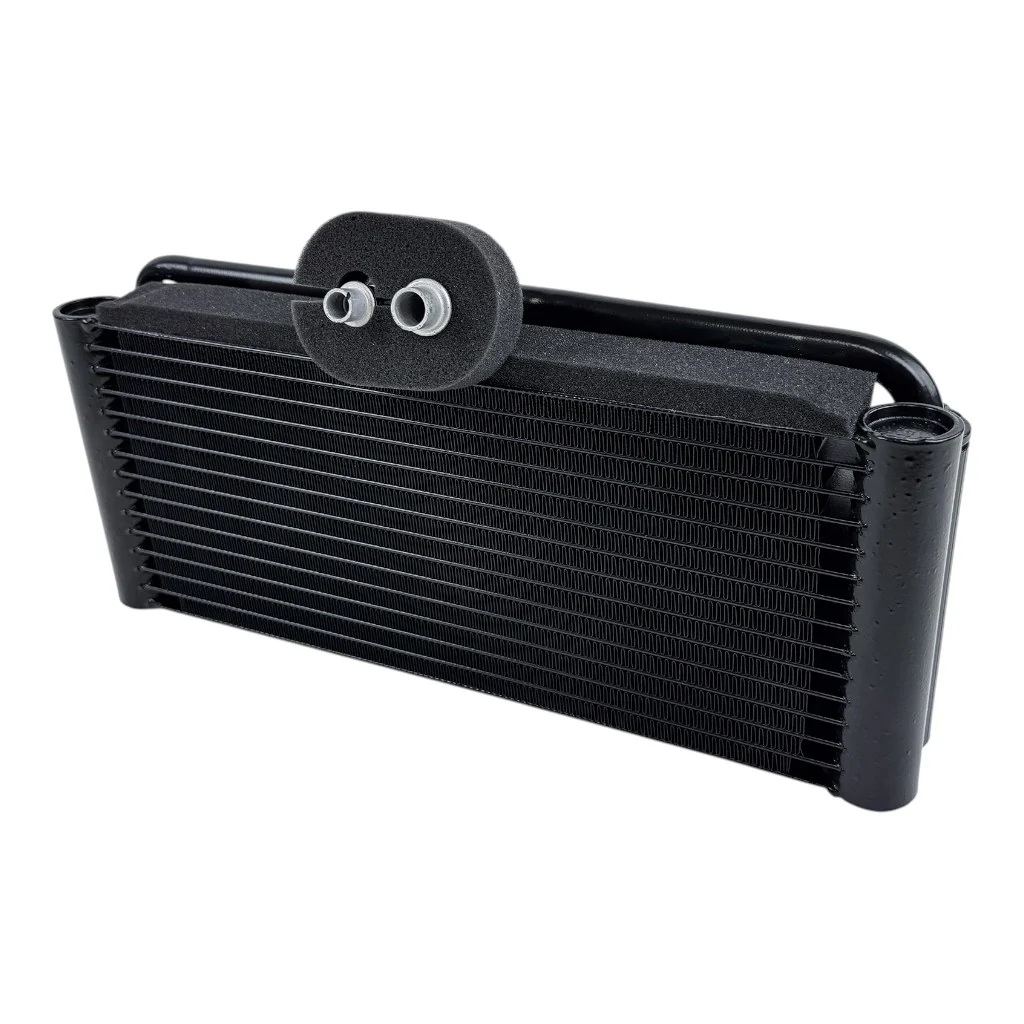

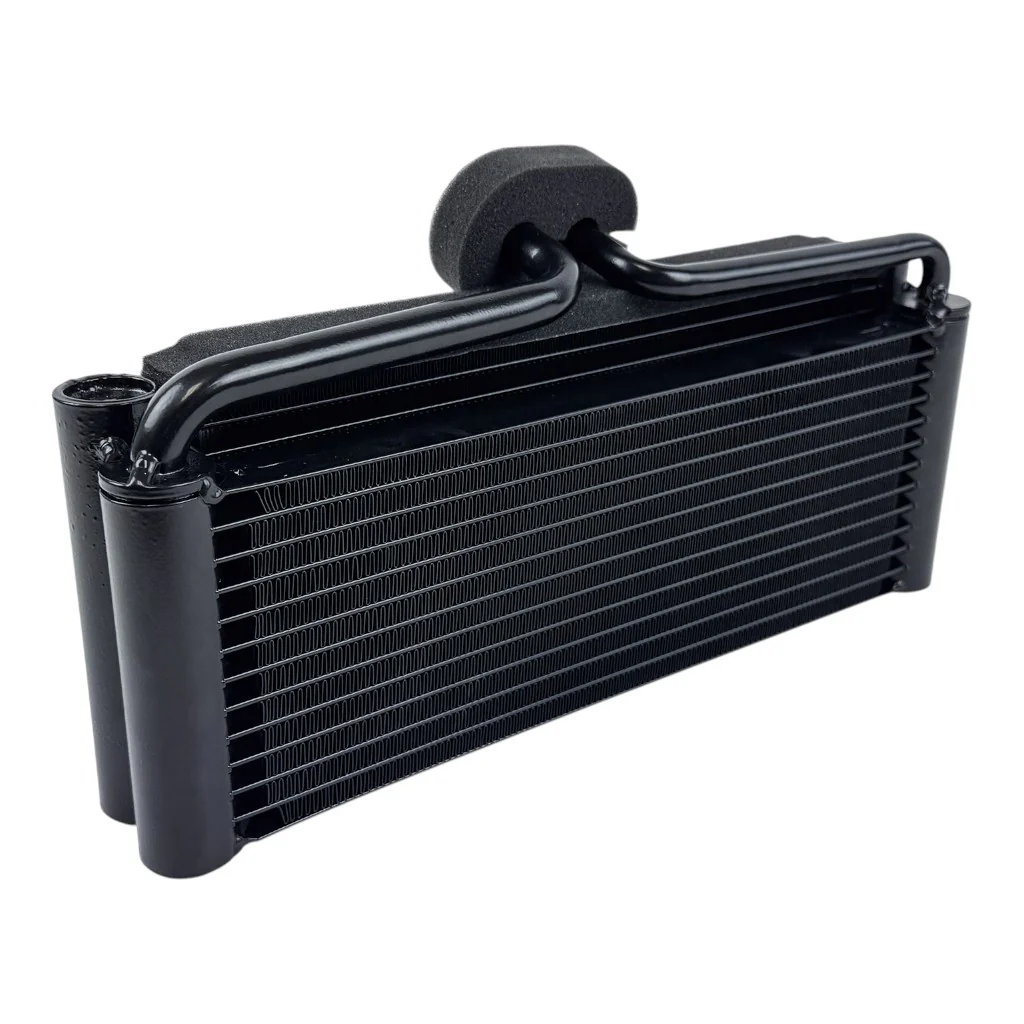

CSF 8368 Performance A/C Evaporator for PORSCHE 964 / 993
Description CSF 8368 Performance A/C Evaporator for PORSCHE 964 / 993

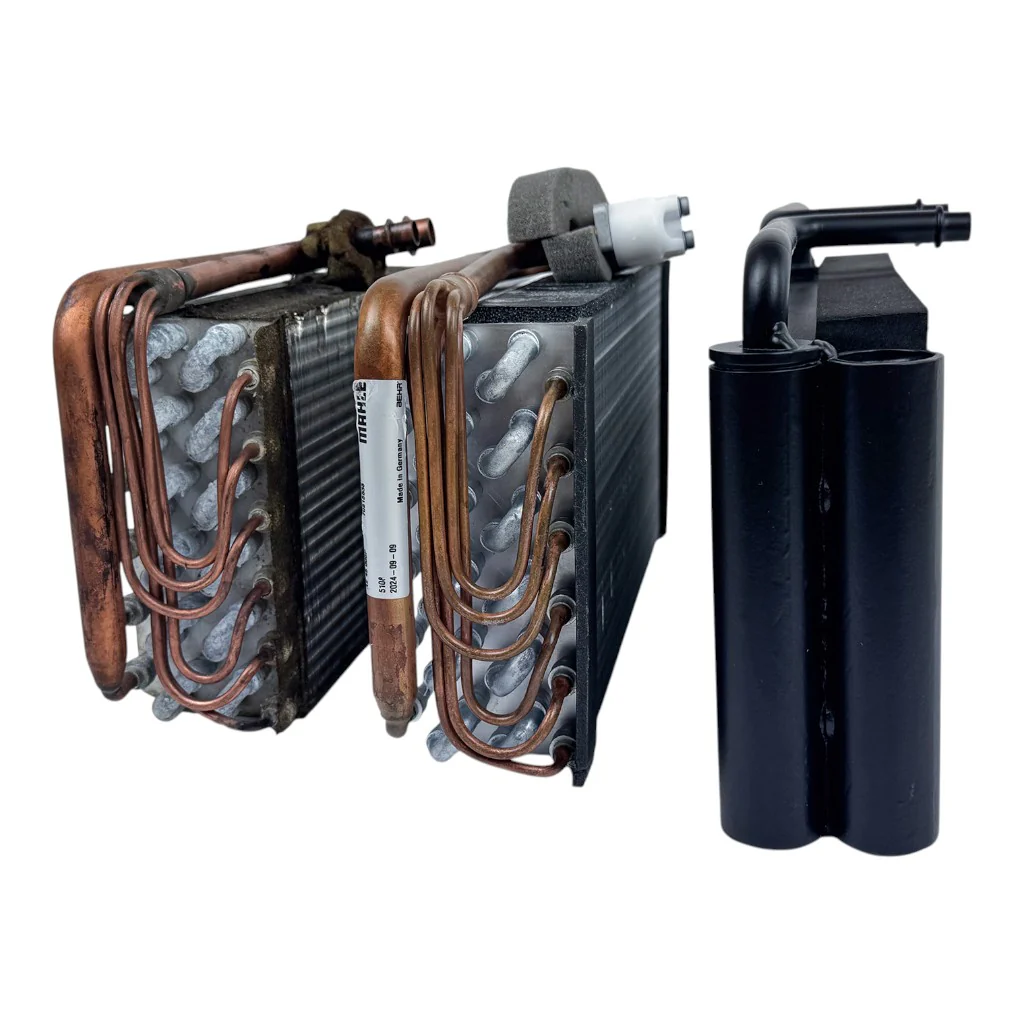

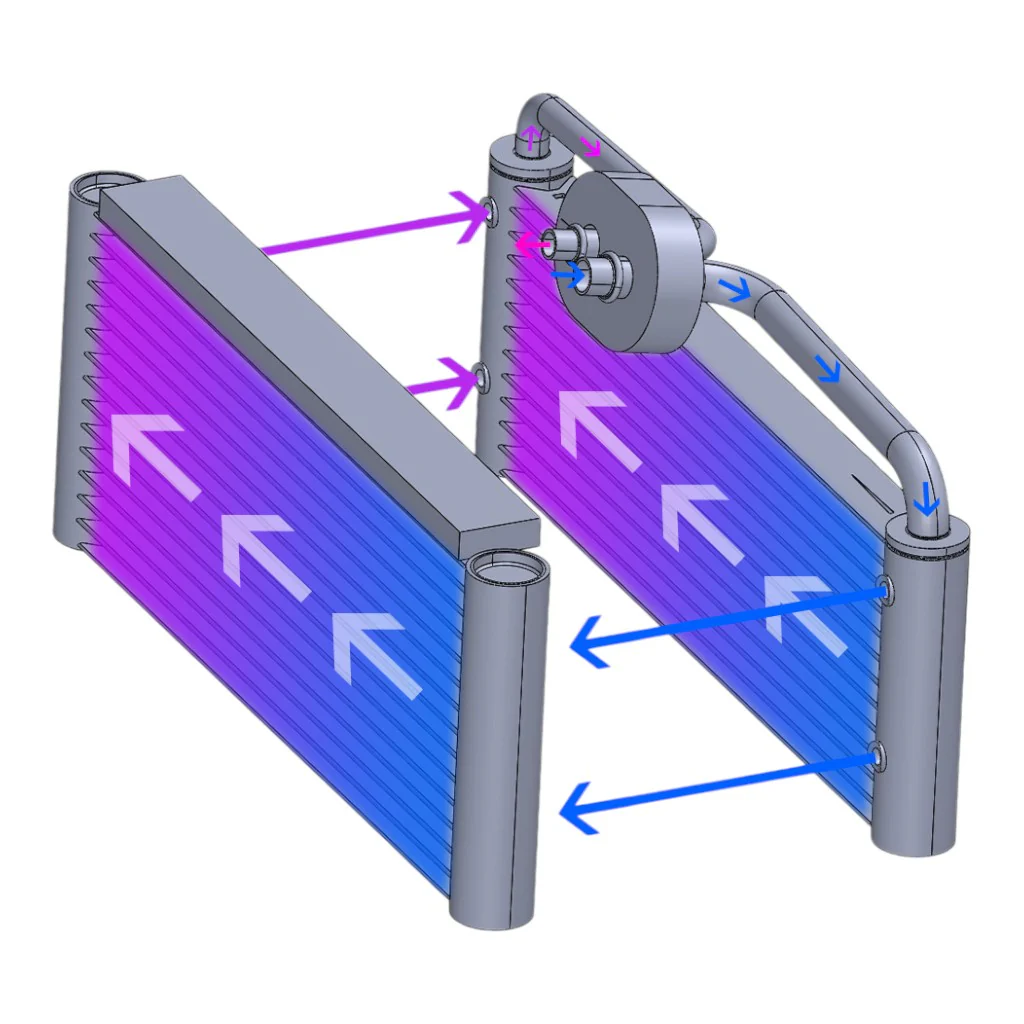

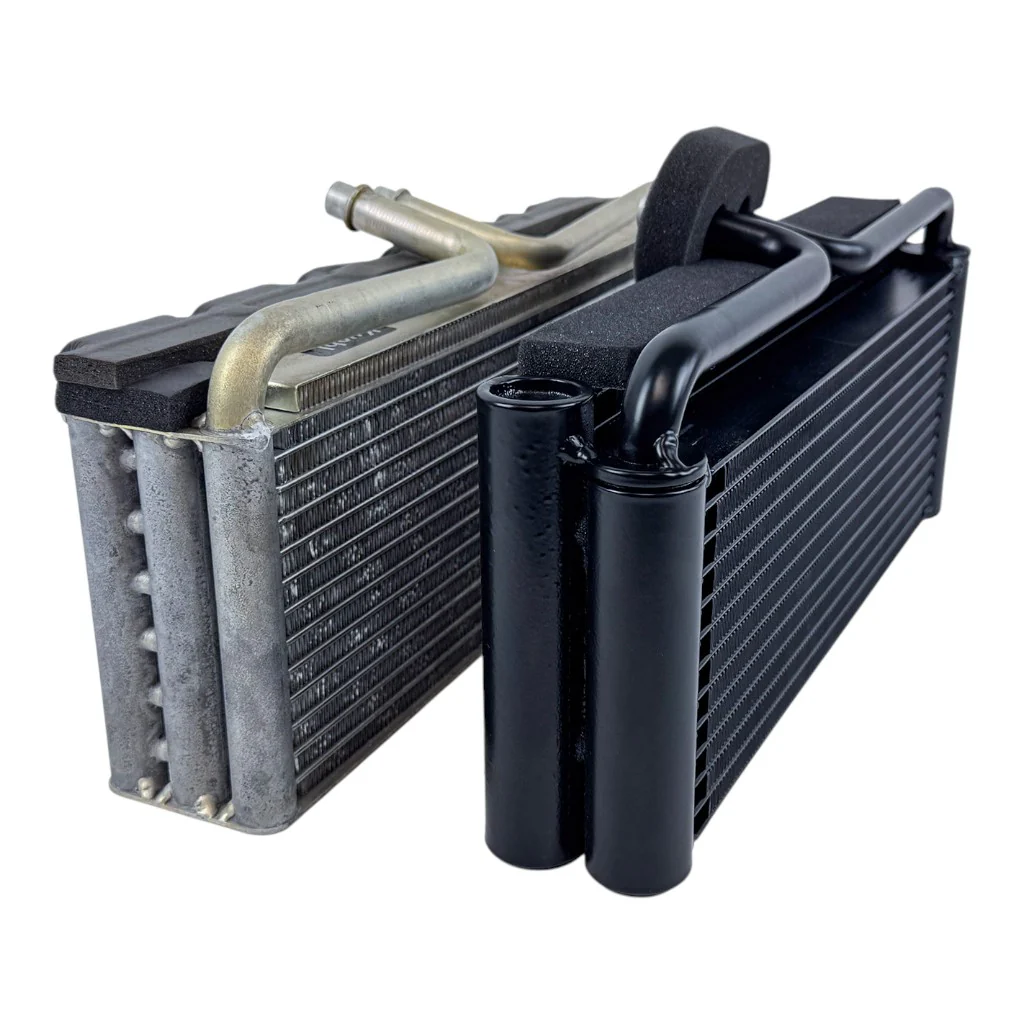

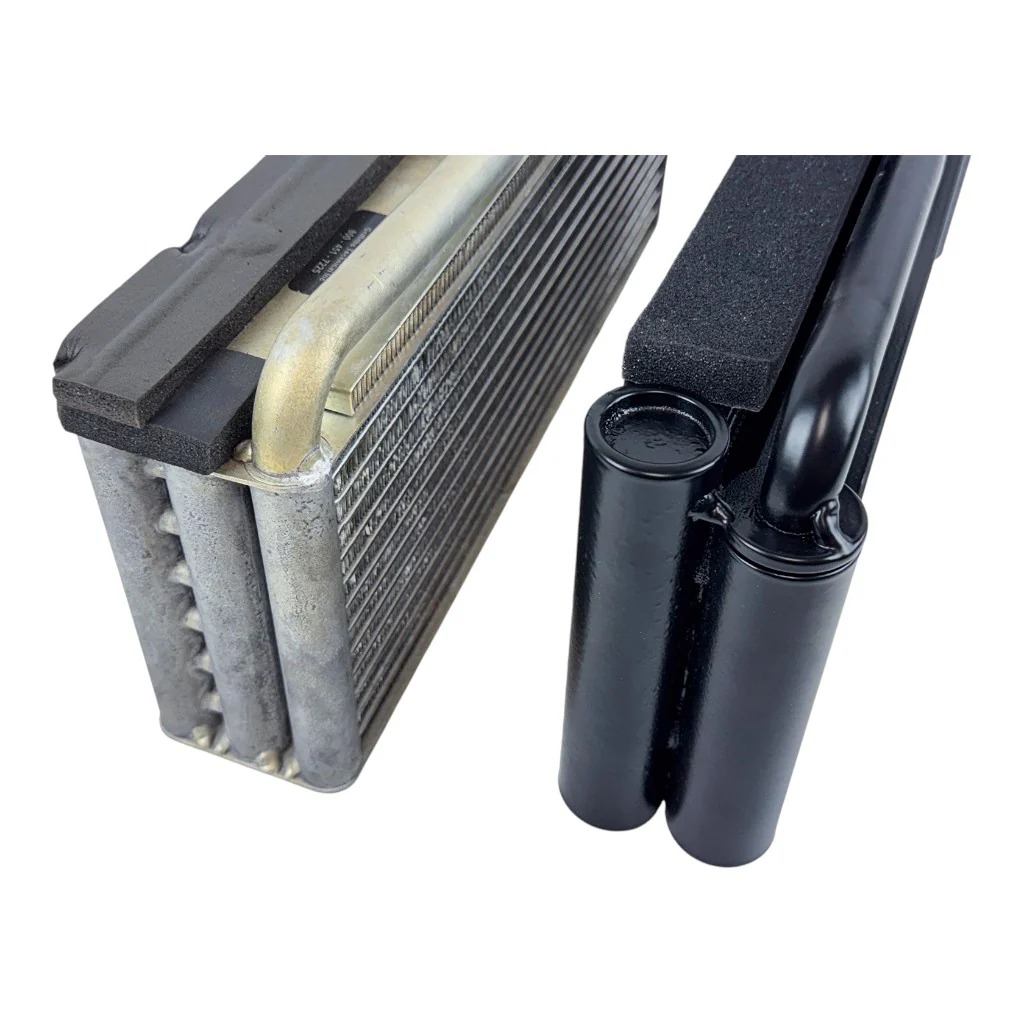

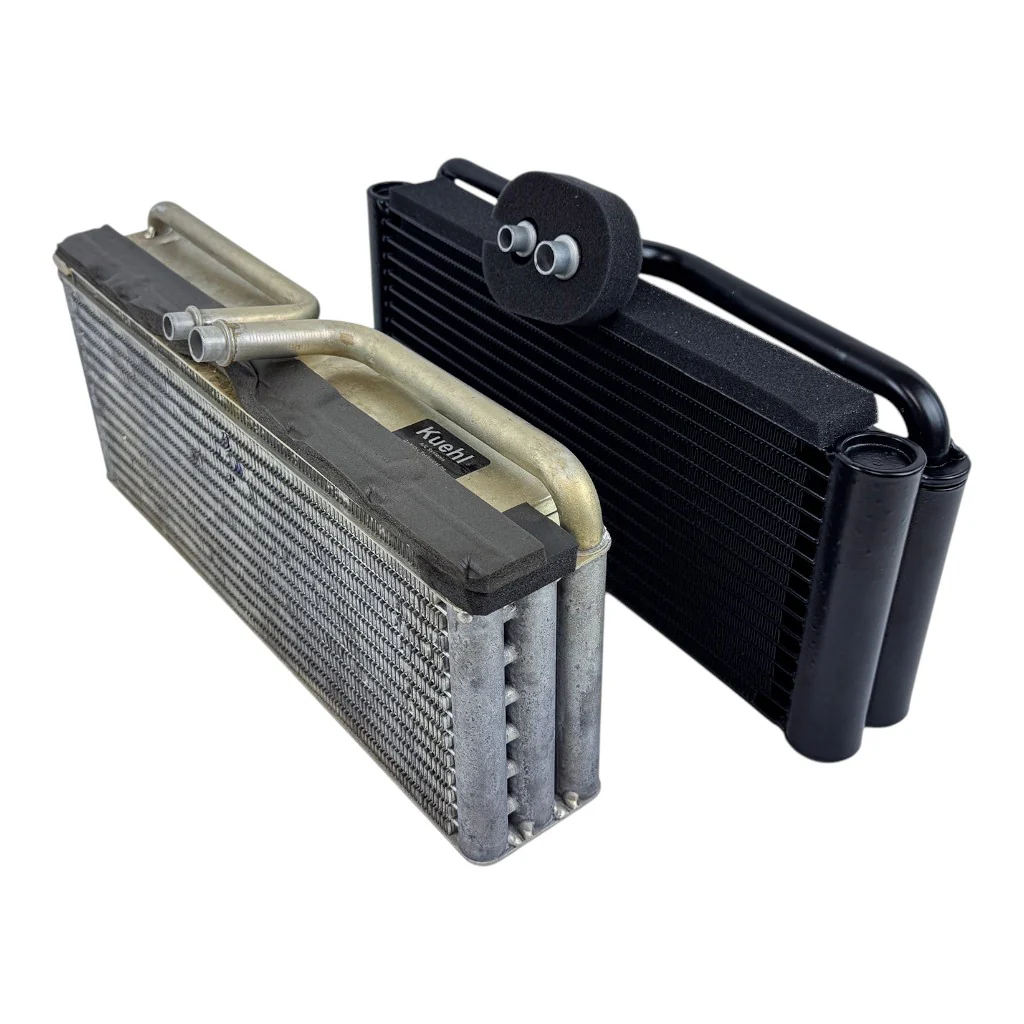

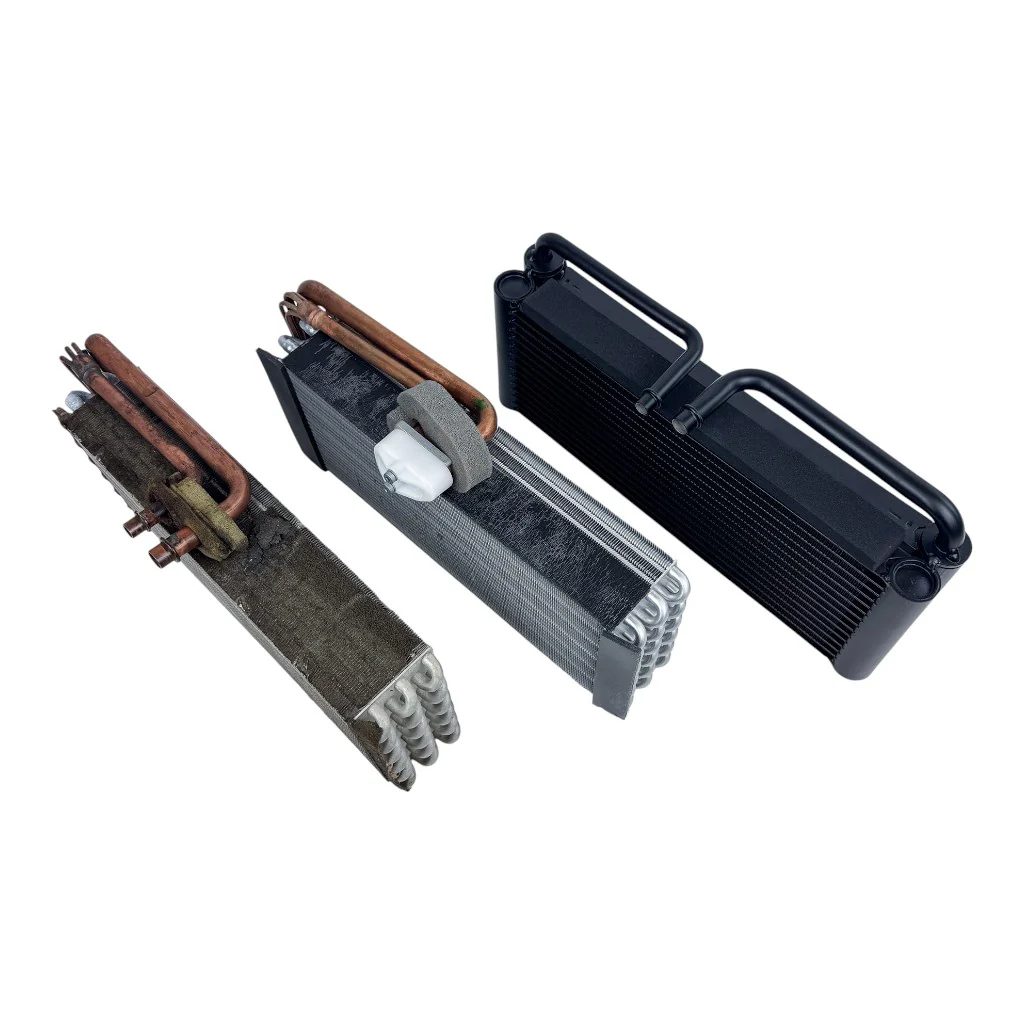

The new 964/993 Evaporator utilizes a modern parallel-flow dual core design. Parallel-flow evaporators are far more efficient than old serpentine style designs like the OEM unit for the 964 and 993. These new cores feature CSF’s Super-High Pressure Multi-Channel Microtube for Optimal Flow and Maximum Surface Area Contact. The CSF evaporator also features an anti-corrosive powder coat finish so there is no chance of oxidation or corrosion in the future. Corrosion and oxidation are what leads to the common white flakes/dust particles that blow from the vents of the 964 and 933.
- Made with a Cross Flow CSF A/C Parallel Dual Core
- Super-High Pressure 26mm 12-Channel Microtubes for Optimal Flow and Maximum Surface Area Contact
- 24 Total Rows of Cooling Tubes paired with 25 Rows of 8mm Tall Multi-Louvered Fins

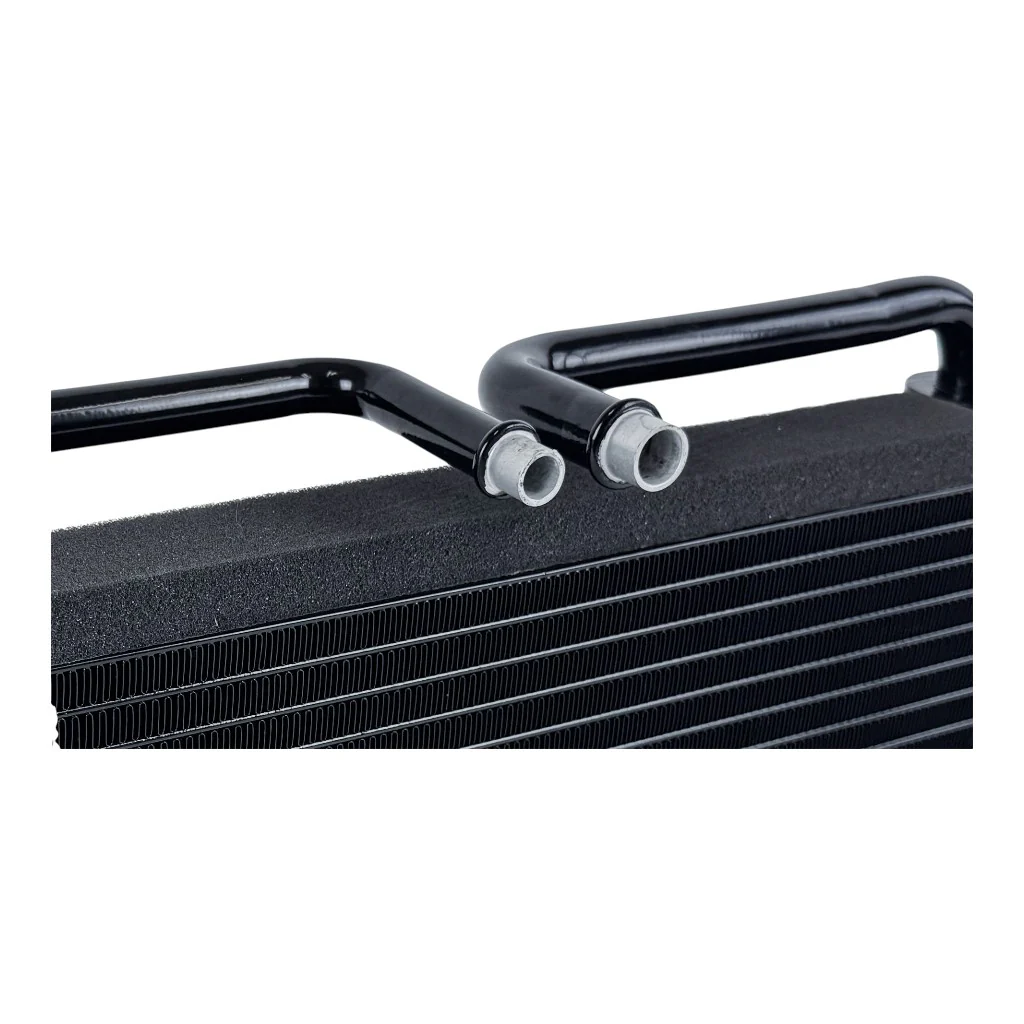

- OEM Style Inlet/Outlet Connections
- Includes hardware, o-rings, and bracket for attaching the OE expansion valve (Porsche: 92857312305 or 92857022300)
- Includes pre-installed foam for best possible seal
- 100% All Aluminum Construction
- Satin Black Finish
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
Applications:
- 1989-1994 Porsche 964 911 Carrera 4 – 3.6L H6
- 1990-1994 Porsche 964 911 Carrera 2 – 3.6L H6
- 1991-1992 Porsche 964 911 Turbo – Turbocharged 3.3L H6
- 1993-1994 Porsche 964 911 RS America – 3.6L H6
- 1993-1994 Porsche 964 911 Turbo 3.6 – Turbocharged 3.6L H6
- 1994 Porsche 964 911 Speedster – 3.6L H6
- 1994-1998 Porsche 993 911 Carrera – 3.6L H6
- 1994-1998 Porsche 993 911 Carrera 4 – 3.6L H6
- 1997-1998 Porsche 993 911 Carrera S – 3.6L H6
- 1996-1998 Porsche 993 911 Carrera 4S – 3.6L H6
- 1995-1996 Porsche 993 911 Carrera RS – 3.8L H6
- 1996-1998 Porsche 993 911 Targa – 3.6L H6
- 1996-1997 Porsche 993 911 Turbo – Turbocharged 3.6L H6
- 1995-1997 Porsche 993 911 GT2 – Turbocharged 3.6L H6
OEM Part Numbers:
- Porsche: 964-573-901-00
- Porsche: 964-573-013-00
- Cross Reference:
- Behr: AE 45 000P
- Cross Reference:
