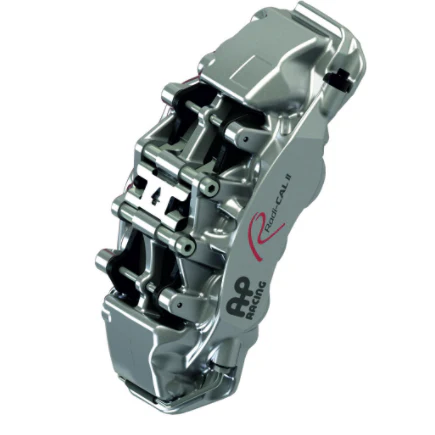

AP RACING CP9560-2S0S10 Brake caliper Radi-CAL (EHK)RHTx36.00-CP7555

CP9560 Family - 62.5cm² Piston Area

Applications:
- Performance Road Front or Rear.

Features:
- Benefits from our latest radical asymmetric design concept.
- Radial Mount, 195mm centres.
- Suits Ø390mm Max or 362mm Min x 36mm Max or 34mm Min thick discs.
- Forged two piece Aluminium alloy body.
- Aluminium alloy pistons.
- Boot type dirt seals fitted.
- Advanced Red, Black or Silver anti-corrosion paint finish.
- Pad anti-rattle clip fitted.

Black Caliper Part Numbers:
- RHT = CP9560-2S0BG4 / LHT = CP9560-3S0BG4 - RHL = CP9560-4S0BG4 / LHL = CP9560-5S0BG4

Red Caliper Part Numbers:
For Red calipers add 'R12' to end of Part Number e.g.
CP9560-2S0R12

Silver Caliper Part Numbers:
For Silver calipers add 'S10' to end of Part Number e.g.
CP9560-2S0S10

Brake Pad Information CP7555D70

- Pad Area = 108.9cm²
- Pad Depth = 70mm
- Thickness = 16.75mm

CALIPER TECHNICAL SPECIFICATIONS
Piston Sizes - mm
- Ø31.8 x 2
- Ø36.0 x 2
- Ø41.3 x 2

Piston Area - cm² 62.5
Disc Diameter - mm
- Max = Ø390.0
- Min = Ø362.0

Disc Thickness - mm
- Max = 36.0
- Min = 34.0

Weight (No Pads) - Kg 4.5
Hydraulic Threads M10x1.0
Mounting Type Radial

Mounting Centres - mm 195.0
Mounting Offset - mm 49.50
Mounting Hole Ø - mm 12.1
PL Dimension - mm 70.0
Bleed Screw Tightening Torque - Nm 17

CALIPER SPARES
Pistons
Ø31.8mm x 2 = CP8336-116
Ø36.0mm x 2 = CP8520-107
Ø41.3mm x 2 = CP8335-111

Seal Repair Kit CP4527-EHK
Tube Pad Retainer & Bolt Part Nos CP9560-106 x 4 * CP5555-156ST x 2
Pad Retaining Pin CP7555-116 x 2
Bleed Screw Kit CP3880-1
Anti-Rattle Shim CP9560-107
