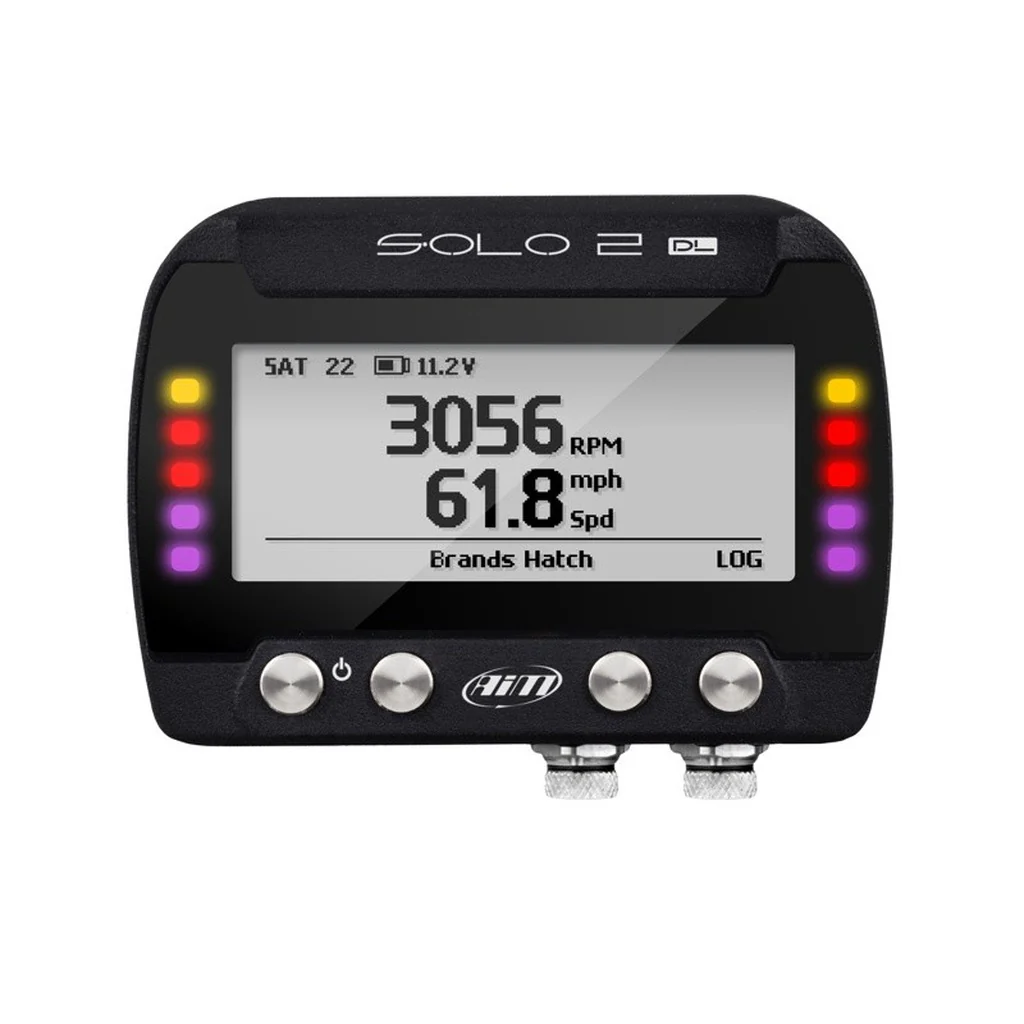

AIM X47SOLO2DL01G0 Lap Timer Solo 2 DL (CAN/K-Line and External Power Cable with OBDII Connector)

GPS Lap Timer with integrated track database and datalogger connectable to the ECU. internal 3 axis ±5G accelerometer + 3 axis gyro + 3 axis magnetometer, 4 GB memory, internal rechargeable lithium battery, magnetic support. Connectable to the ECU via CAN/RS232 and OBDII-K Line, IP67.

Solo 2 DL is the upgraded version of Solo 2, it features a 25 Hz, four constellation GPS receiver and a 100 Hz 6-axis inertial platform and provides:

• Lap times
• Sector times
• Position and vehicle speed
• 3D acceleration and gyro
• ECU data: you can select the protocol of your car/bike among thousands of pre-defined protocols, or easily develop your own. CAN, K-Line or RS232 connections.
• Digital RPM from the primary of the coil (150-400V) or from a square wave (8-50V)
• CAN expansions: Lambda controller LCU1S, analog inputs ACC2, professional motorsport camera SmartyCam 3

In the box

• Solo 2 DL

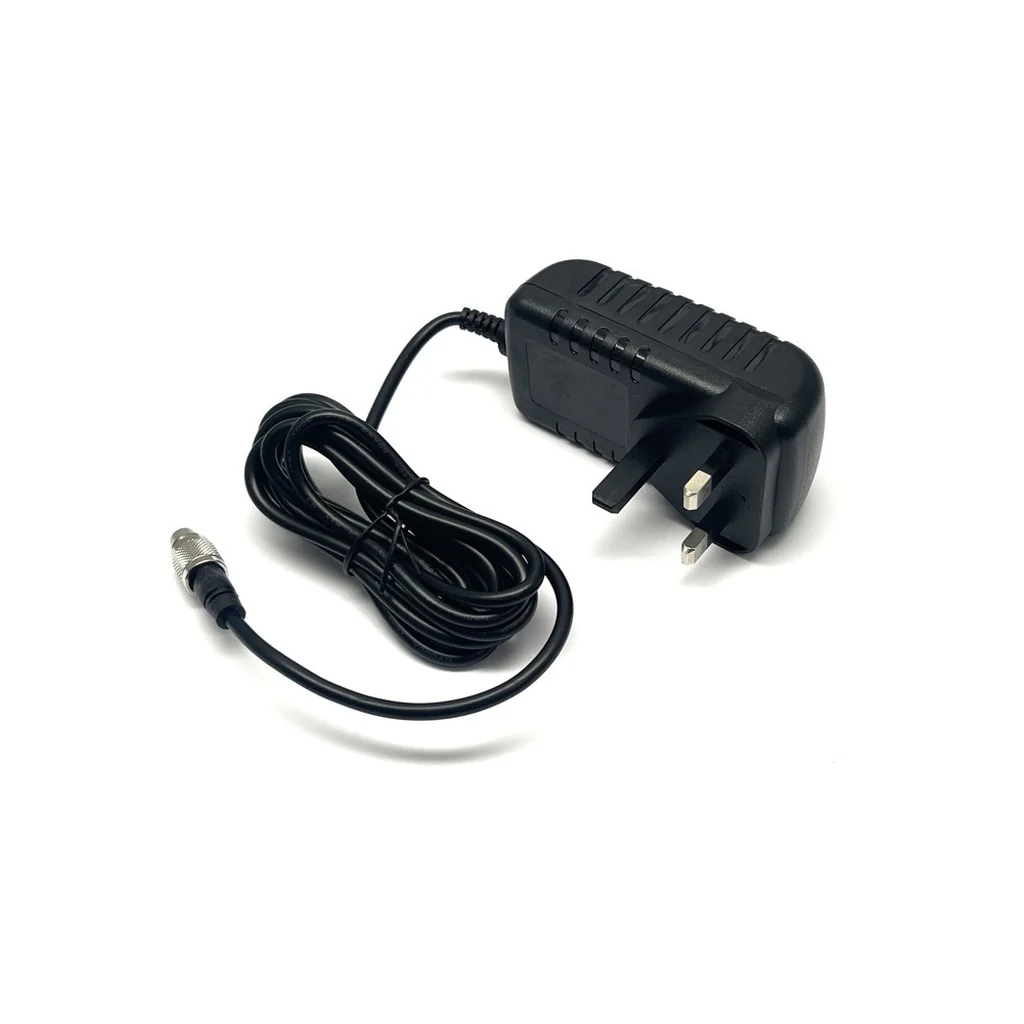

• Battery charger with AC adapter

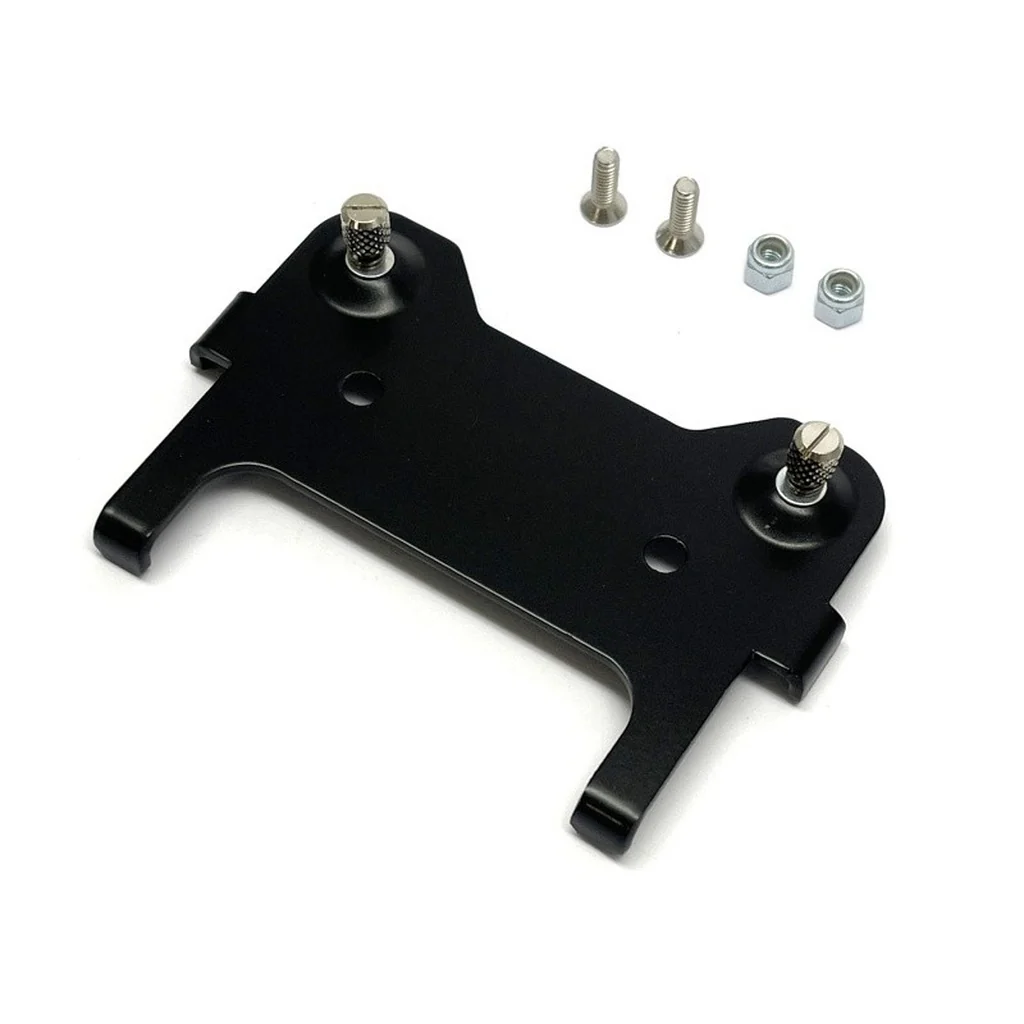

• Mounting bracket with screws
• User manual

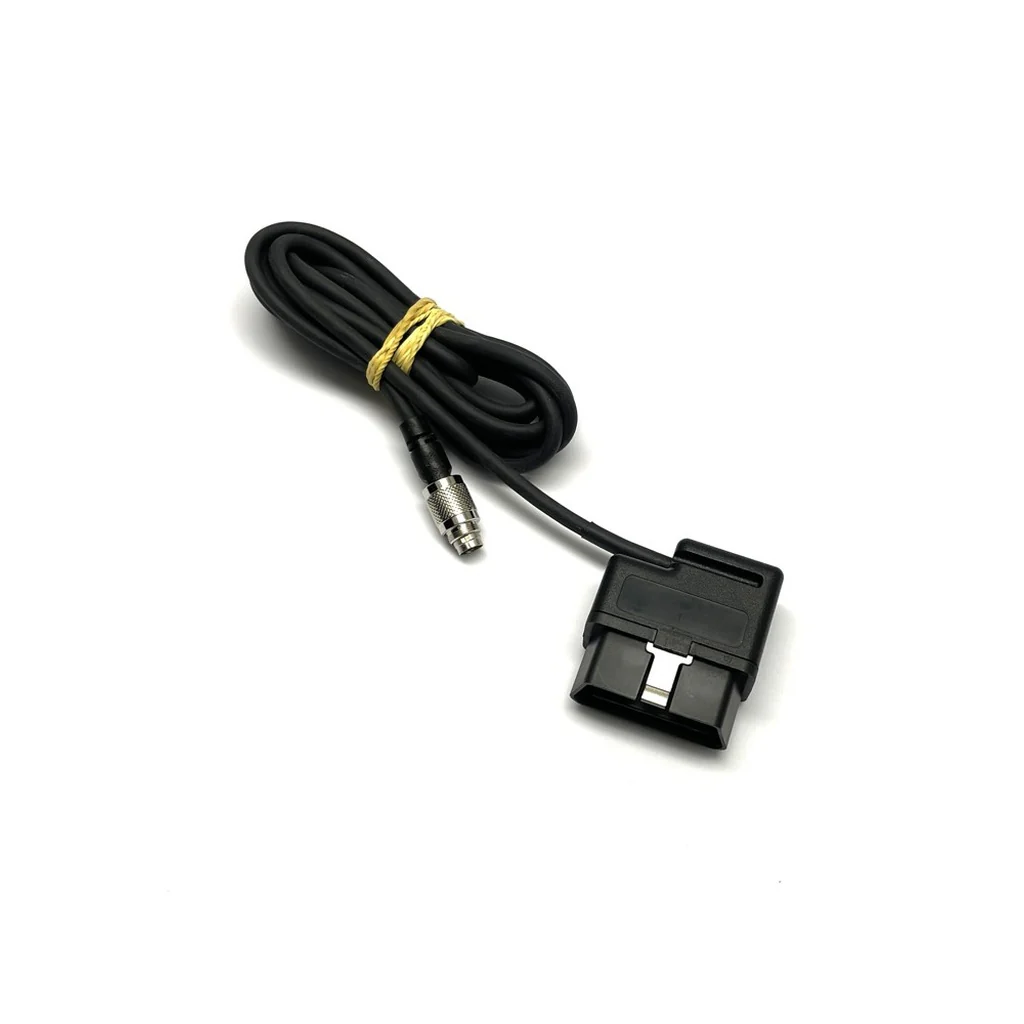

• CAN/K-Line + external power cable with OBDII connector

Charger for UK
